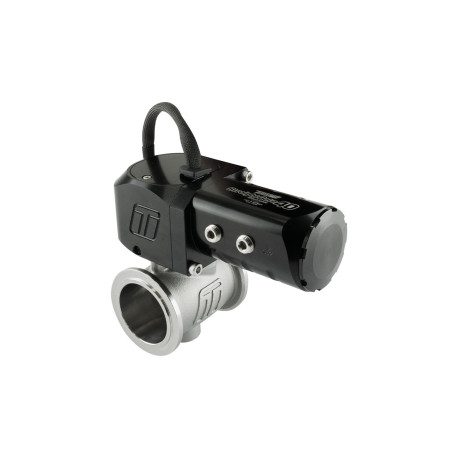

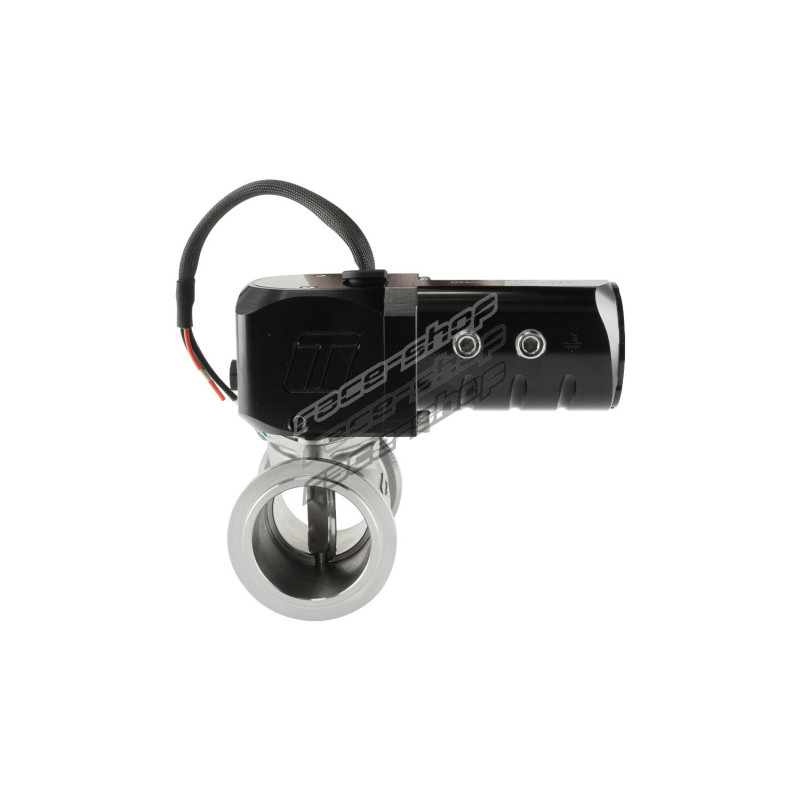

TURBOSMART eSG40 StraightGate electronic external wastegate

TURBOSMART eSG40 StraightGate electronic external wastegate with a zero-offset butterfly valve, the smallest butterfly-style external wastegate, designed for tight engine bays. With no reference hoses, springs or diaphragms, the valve is driven by a servo motor through a zero-backdrive gearbox. Both valve halves are equally exposed to exhaust drive pressure, so the valve is self-balanced and actuates even against high drive pressures, and the straight-through path without a 90° turn flows more than a poppet-style valve.

• 40 mm (1.57") zero-offset butterfly valve
• 217.4 CFM (6.16 m3 per minute) flow
• Stainless steel (630) butterfly and shaft, stainless steel (347) main body
• Heat treated stainless steel (431) V-Band clamps, 360 degree mounting options
• Clockable actuator position (3 x 120° options)
• Full electronic actuation (dual H-bridge input)
• Onboard analog actuator temperature sensor (0-5 V)
• Onboard analog (0-5 V) and digital (PWM) valve position sensors
• 7 wire unterminated flying lead loom
• Liquid cooling for actuator stability

Package contents:

• Electronic StraightGate unit
• Unterminated flying lead
• Inlet and outlet V-Bands
• Inlet and outlet weld flanges
• TURBOSMART decal
