Digital Thermatic Fan Switch with 1/4" NPT Sensor & 35mm Inline Adapter Kit

Designed to manage Electric Fans or Electric Water Pumps (EWP), this comprehensive kit includes two thermal sensors and a 35mm inline adapter for a professional cooling setup. The adapter allows for easy installation directly into the engine's radiator hose.

The switch supports 1 or 2 fans (12V or 24V applications) with a 10-second delay for the second fan to manage electrical surges. Fans will operate until the temperature falls 5°C below your set target, ensuring precise thermal management.

Features & Fitting Options

• Dual Sensors: Includes a universal Radiator Probe and a 1/4" NPT Sensor for direct engine or adapter fitment.

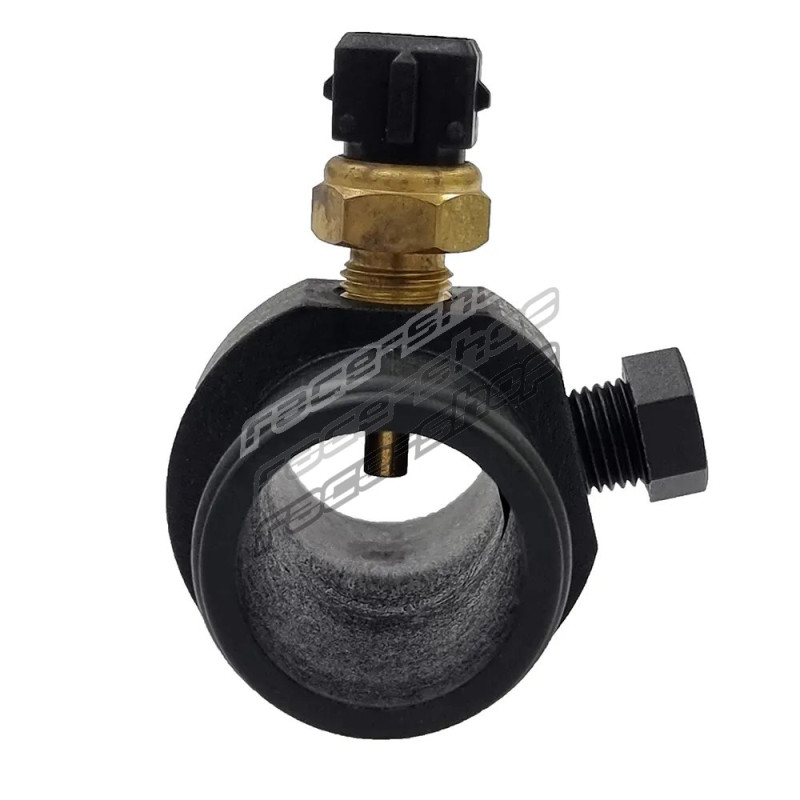

• 35mm Inline Adapter: Fits into top radiator hose; includes 3mm sleeves to increase size to 41mm (Part DC18510).
• IP66 Protection: Dust-tight and protected against high-pressure water jets for reliability in harsh environments.
• Custom Range: Adjustable between 40°C and 110°C (104°F to 230°F) with a digital LED display.
• 24V Compatibility: 12V standard; requires 2x 24V relays (Part DC10534) for 24V vehicle applications.

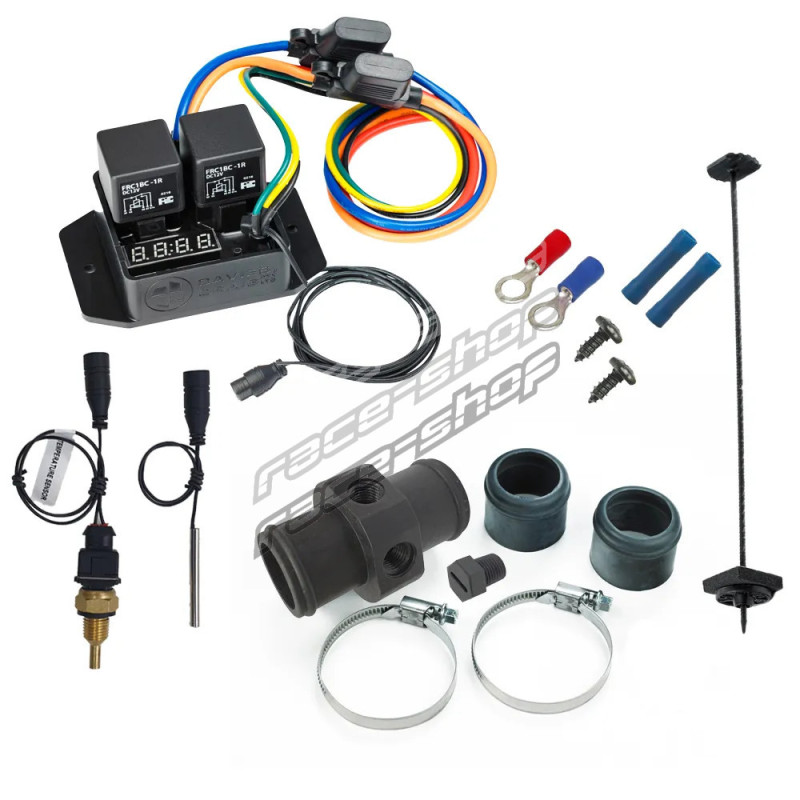

Kit contents (Part DC0435)

• Digital Fan Switch (IP66): 1
• Thermal Sensor Probe & Mounting Kit: 1
• 1/4" NPT Thermal Sensor: 1
• In-Line Adapter 35mm (with Bung): 1
• Adapter Rubber Sleeves (3mm): 2
• Hose Clamps: 2
• Ring Terminals, Wire Joiners & Screws: 6
• Installation Instructions: 1

Installation Demonstration

How to Install and Setup the Digital Thermatic Fan Switch.
