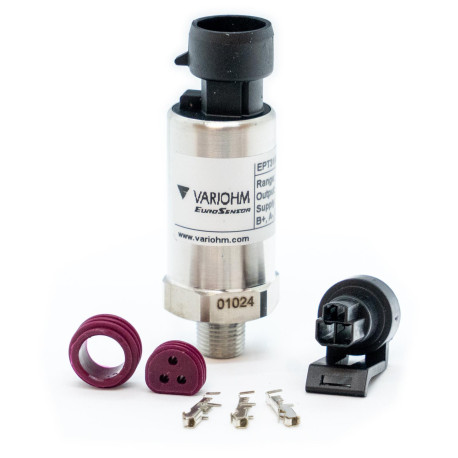

Link 5 Bar MAP Sensor EU (MAP5EU)

The Link 5 Bar MAP Sensor is a high-accuracy manifold absolute pressure (MAP) sensor designed for turbocharged and supercharged engines operating at up to 58 psi (4 bar) of boost. Featuring a rugged stainless steel construction and fast response time, it delivers stable and accurate pressure measurement for reliable engine tuning in demanding motorsport and performance applications.

Models Supported

All Link ECUs.

Other aftermarket ECUs with a 5V ratiometric analogue input.

Turbocharged and supercharged engines running up to 58 psi (4.0 bar) of boost.

Warnings

Designed for use with a regulated 5V sensor supply.

Using Link G4/G4+/G4X/G5 ECU's select the MAP sensor type in PC Link as 'Variohm 5 Bar'.

Not recommended for naturally aspired engines or boost levels exceeding 4 BAR / 58psi.

Specifications

Highlights

The Link 5 Bar MAP Sensor has the following specifications:

• Pressure range: -1 to +4 bar (-14.5 to +58 psi).
• 0.5-4.5V ratiometric output.
• 5V supply voltage.
• High-accuracy piezoresistive sensing element.
• Stainless steel housing.
• Fast response time (<1ms).
• Excellent vibration and shock resistance.
• Operating temperature: -40°C to +125°C.
• IP66 rated.
• Packard Metri-Pack connector.
• 1/8" NPT Male pressure port.
• Comes with TI Sensor Connector Kit.

Product Dimensions

• 70mm(L)x30mm(W)x30mm(H)
• 2.76in(L)x1.18in(W)x1.18in(H)

Product Weight

• 65 grams (2.29 ounces)

Electrical

• Operating Voltage Range: 5V
• Maximum Input Voltage: 5V

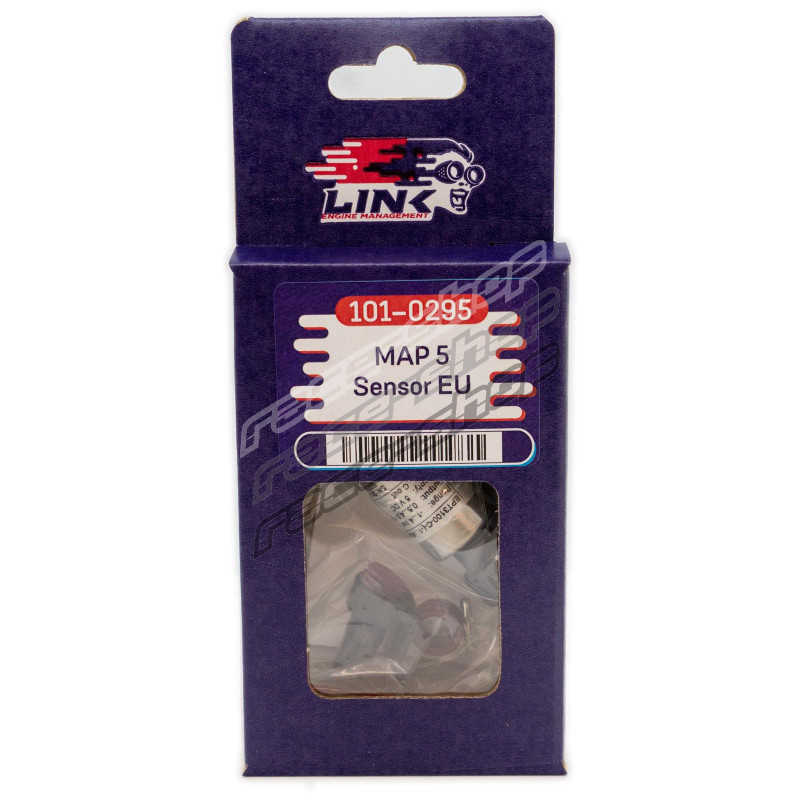

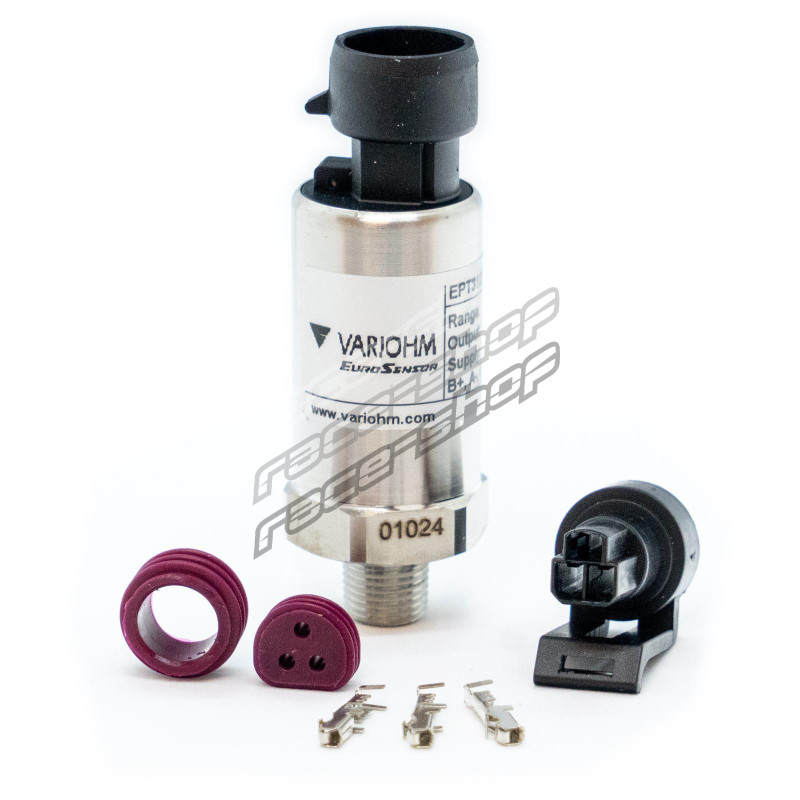

What's in the Box

• MAP Sensor 5 Bar
• TI Sensor Connector Kit
• Printed Accessory instructions

PCLink Calibration Name

• "5 Bar Variohm"

Raw Calibration Specs

• 0.5V = 0kPa, 4.5V = 500kPa

Connector

• TI Sensor Connector Kit 101-0130
