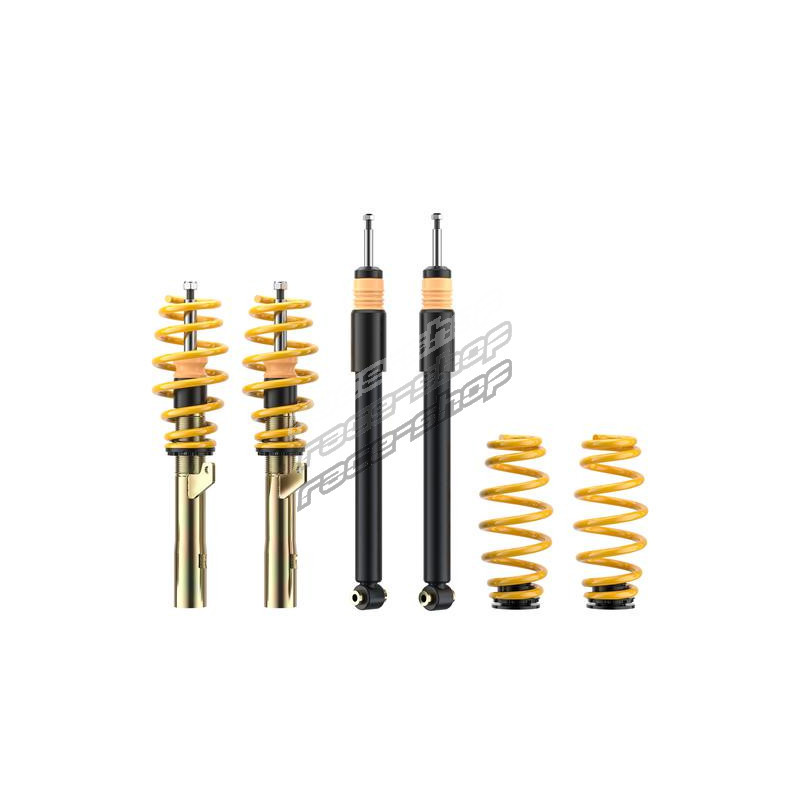

ST Performance coilovers for Ford Focus II - type ST X

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: station wagon

Front axle lowering: 30-60mm

Rear axle lowering: 30-60mm

Show full description

Condition: New product

Reference: ST-13230022

EAN: 4250173374330

Otázka k produktu

Notify me

Frequently bought together

Improve you vehicles handling by installing a set of street performance ST Coilovers.

Suitable for: station wagon

Front axle lowering: 30-60mm

Rear axle lowering: 30-60mm

ST X Coilover series with fixed damping

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know-how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily height-adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles.

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers

Individual lowering within the tested adjustment range
Front and rear axle thread adjustment (when possible)
Galvanized coilover struts with additional coating for optimized corrosion protection
Complete solution with adjustable spring plate, spring system and bumpers with dust protection
Powerful twin-tube dampers with high-quality components for maximum longevity

Suitable for:

Make: Ford
Model: Focus II
Type: (DA3; DB3; DA3-RS)
Year: 01/05-
Additional information: station wagon

Manufacturers note:

Technical information:

Material: Galvanized steel
Product line: Street Performance coilover kit
Coilover version: ST X
Damping adjustment: No
Front axle load (FA): -1070kg
Rear axle load (RA): -1090kg
Front axle lowering (VA): 30-60mm
Rear axle lowering (HA): 40-70mm

Package content:

Set FA coilover struts, RA springs with height adjustment + dampers

Full coilover kit application:

Manufacturer	Model	Type	Engine	Vehicle shape	Fuel	Performance	Cubic capacity	Cylinder	Four wheel drive
FORD	FOCUS II Station Wagon (DA_, FFS, DS) 07/2004-09/2012	DA_, FFS, DS	1.4	Estate	Petrol	59 KW	1388 ccm	4 Cylinder	No
FORD	FOCUS II Station Wagon (DA_, FFS, DS) 07/2004-09/2012	DA_, FFS, DS	1.6 TDCi	Estate	Diesel	66 KW	1560 ccm	4 Cylinder	No
FORD	FOCUS II Station Wagon (DA_, FFS, DS) 07/2004-09/2012	DA_, FFS, DS	1.6 TDCi	Estate	Diesel	74 KW	1560 ccm	4 Cylinder	No
FORD	FOCUS II Station Wagon (DA_, FFS, DS) 07/2004-09/2012	DA_, FFS, DS	1.6 TDCi	Estate	Diesel	80 KW	1560 ccm	4 Cylinder	No
FORD	FOCUS II Station Wagon (DA_, FFS, DS) 07/2004-09/2012	DA_, FFS, DS	1.6 TDCi	Estate	Diesel	81 KW	1560 ccm	4 Cylinder	No
FORD	FOCUS II Station Wagon (DA_, FFS, DS) 07/2004-09/2012	DA_, FFS, DS	1.6 Ti	Estate	Petrol	85 KW	1596 ccm	4 Cylinder	No
FORD	FOCUS II Station Wagon (DA_, FFS, DS) 07/2004-09/2012	DA_, FFS, DS	1.6	Estate	Petrol	74 KW	1596 ccm	4 Cylinder	No
FORD	FOCUS II Station Wagon (DA_, FFS, DS) 07/2004-09/2012	DA_, FFS, DS	1.8 TDCi	Estate	Diesel	85 KW	1753 ccm	4 Cylinder	No
FORD	FOCUS II Station Wagon (DA_, FFS, DS) 07/2004-09/2012	DA_, FFS, DS	1.8	Estate	Petrol	92 KW	1798 ccm	4 Cylinder	No
FORD	FOCUS II Station Wagon (DA_, FFS, DS) 07/2004-09/2012	DA_, FFS, DS	2.0 TDCi	Estate	Diesel	100 KW	1997 ccm	4 Cylinder	No
FORD	FOCUS II Station Wagon (DA_, FFS, DS) 07/2004-09/2012	DA_, FFS, DS	2.0 TDCi	Estate	Diesel	81 KW	1997 ccm	4 Cylinder	No
FORD	FOCUS II Station Wagon (DA_, FFS, DS) 07/2004-09/2012	DA_, FFS, DS	2.0 TDCi	Estate	Diesel	98 KW	1997 ccm	4 Cylinder	No
FORD	FOCUS II Station Wagon (DA_, FFS, DS) 07/2004-09/2012	DA_, FFS, DS	2.0	Estate	Petrol	107 KW	1999 ccm	4 Cylinder	No
