WISEFAB lock kit for Nissan 350Z

Name: WISEFAB lock kit for Nissan 350Z
Brand: Wisefab
SKU: WF350
Price: 3196.40 EUR
Availability: OutOfStock

With many years experience and feedback from the best drivers in the world, Wisefab have developed a new version of their kit for Nissan Z chassis. It features : improved control, more suspension travel, less sensitive steering, increased steering ratio for smoother handling, an even wider angle (70°), adjustable lock stoppers, reduced weight thanks to lighter materials, and an optimised design. Approved by drifting champion James Deane !

Show full description

Condition: New product

3.196,40 € tax incl.1

Sold out

In stock: 0 psc

Product is unavailable. Please choose other goods.

For automatic information about product status update,
click on "notify me".

Otázka k produktu

Notify me

Reference:

Frequently bought together

Product Features:

To suit Nissan 350Z
Compatible with LHD or RHD vehicles
65° of steering angle
Corrected roll centre
Ackermann reduction and adjustment
Optional steering rack relocation kit

Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

Two versions are available :

Standard : the kit is available in a standard version, using the existing steering rack, without requiring any particular modifications to the vehicle. If you choose this version, it is possible to upgrade it later, ordering only the steering rack relocation kit (contact us for more information).
Steering rack relocation : this version of the kit allows you to move the steering rack 46 mm forward. All necessary hardware is included, and installation will require cutting and welding. The final result is an even greater steering angle (over 70°), a smoother Ackermann effect, all while ensuring better clearance of the oil pan (ideal for RB or JZ swaps).

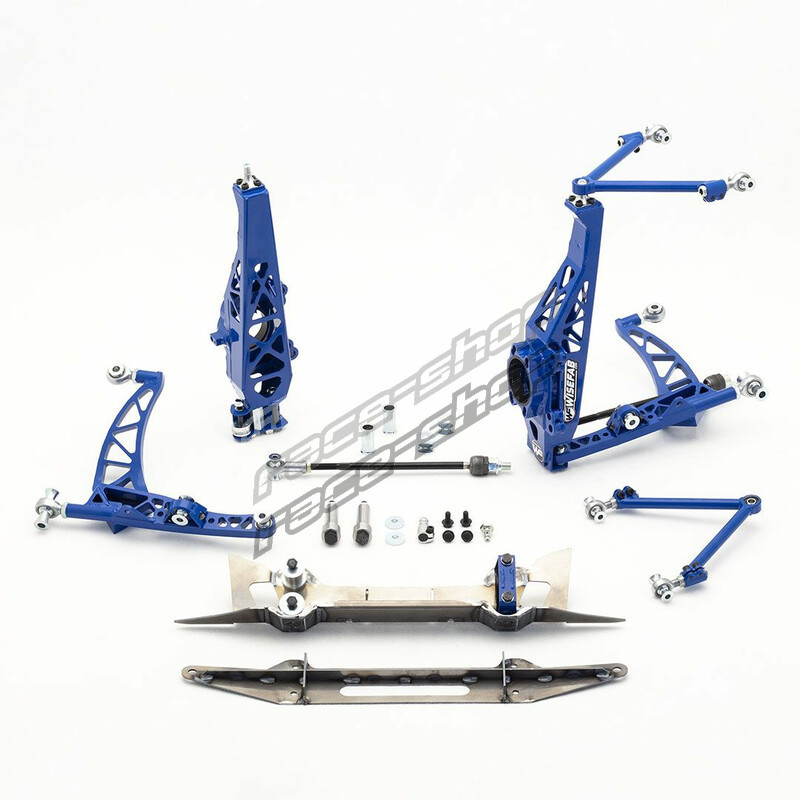

Kit contents :

Hub knuckles
Lower arms
Tie rods and tie rod ends
Optional steering rack relocation kit
All required harware for installation
Adjustable lock stoppers
Adjustable Ackermann effect
Installation and tuning manual

Manufacturer advice :

Wisefab recommend a wheel diameter that doesn't exceed 635 mm (225/40R18 for example)
Above 635 mm, the inner wheel wells will need to be modified
Wide arches or arch extensions are useful for this kit (track width is increased of about 5 cm at each side)
We advise you to use 8" wide front wheels, with an offset (ET) of 35 mm (or similar size)
Adjust camber between -3.5 and -4°
Adjust caster between 6 and 6.5°

This kit comes with everything needed for a "plug and play" installation.
