WISEFAB lock kit V2 for Nissan 200SX S14, S14A and Silvia S15

Product Features:

• V2 Wisefab kit for Nissan 200SX S14, S14A & Silvia S15
• 70° steering angle
• Better control & less sensitive steering
• 60 mm raised roll centre
• Increased steering ratio for smoother handling
• Adjustable Ackermann effect
• Camber & caster adjustable top mounts
• Adjustable lock stoppers
• Optional steering rack relocation kit
• Reduced weight

With many years experience and feedback from the best drivers in the world, Wisefab have developed a new version of their kit for Nissan S chassis. It features : improved control, more suspension travel, less sensitive steering, increased steering ratio for smoother handling, an even wider angle (70°), adjustable lock stoppers, reduced weight thanks to lighter materials, and an optimised design. Approved by drifting champion James Deane !

Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations !

Two versions are available :

• Standard : the V2 kit is available in a standard version, using the existing steering rack, without requiring any particular modifications to the vehicle. If you choose this version, it is possible to upgrade it later, ordering only the steering rack relocation kit (contact us for more information).

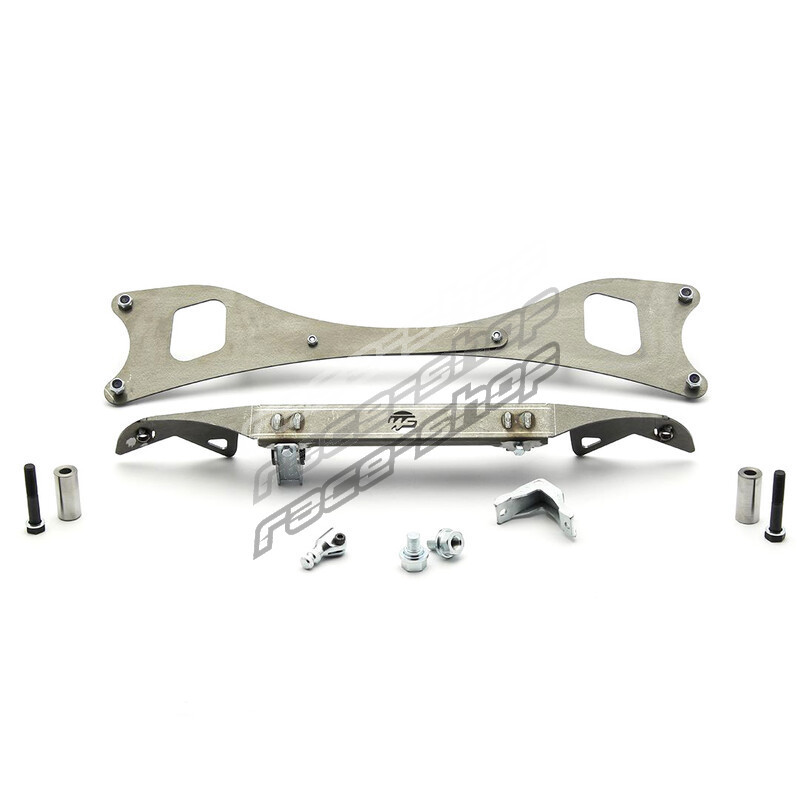

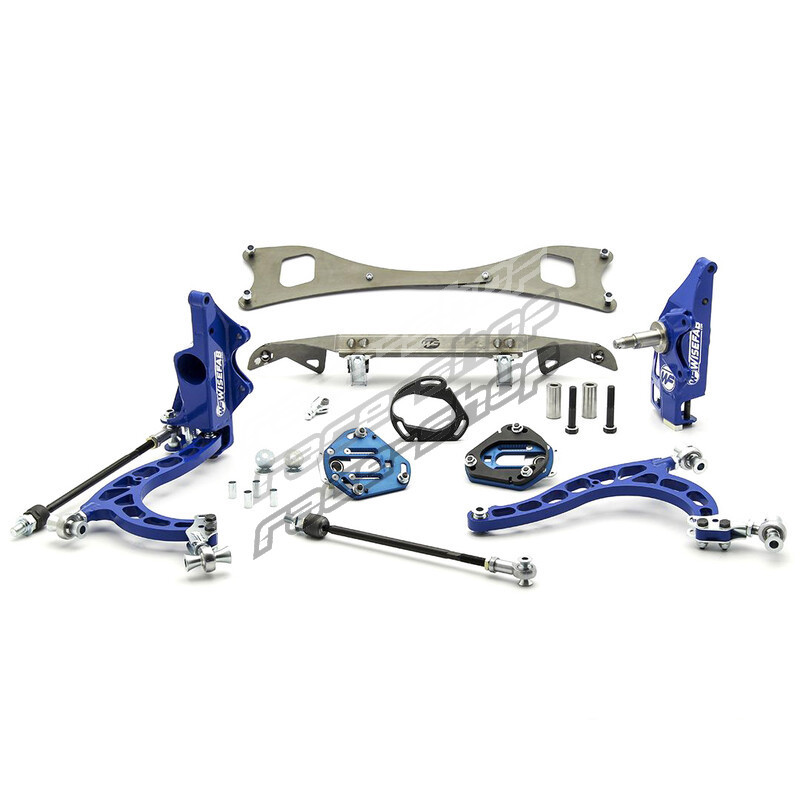

• Steering rack relocation : this version of the V2 kit allows you to move the steering rack 46 mm forward. All necessary hardware is included, and installation will require cutting and welding. The final result is an even greater steering angle (over 70°), a smoother Ackermann effect, all while ensuring better clearance of the oil pan (ideal for RB or JZ swaps).

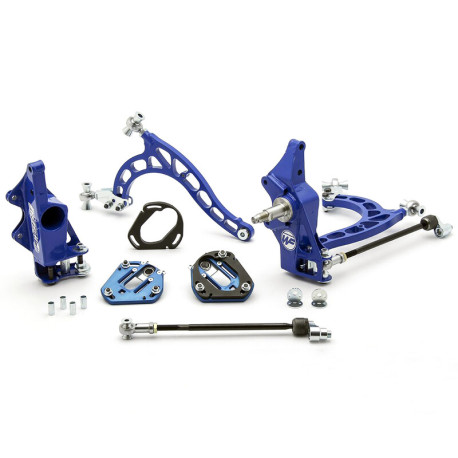

Kit contents :

• Camber and caster adjustable top mounts

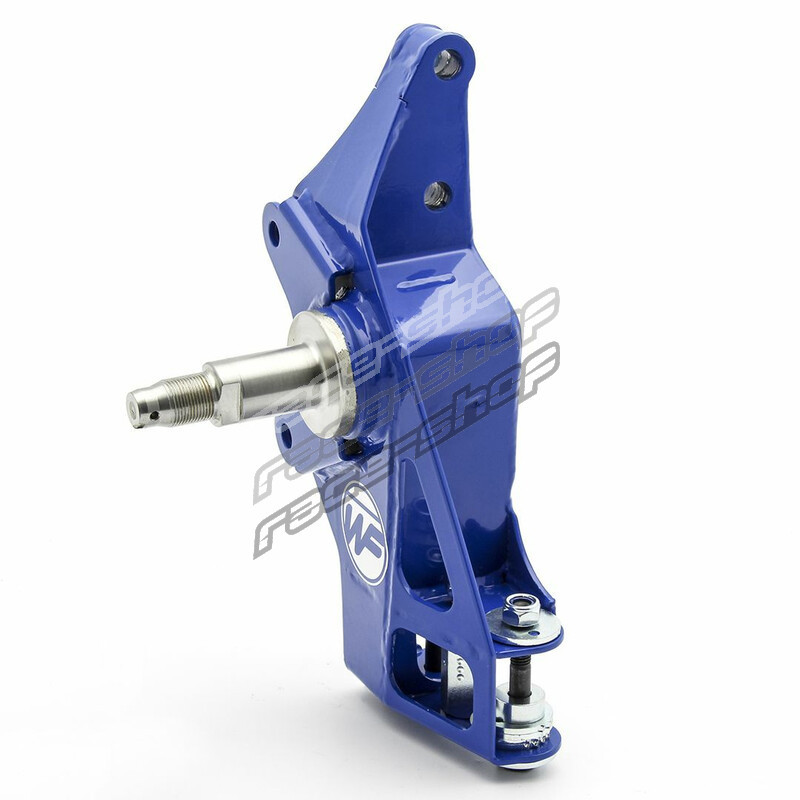

• Hub knuckles

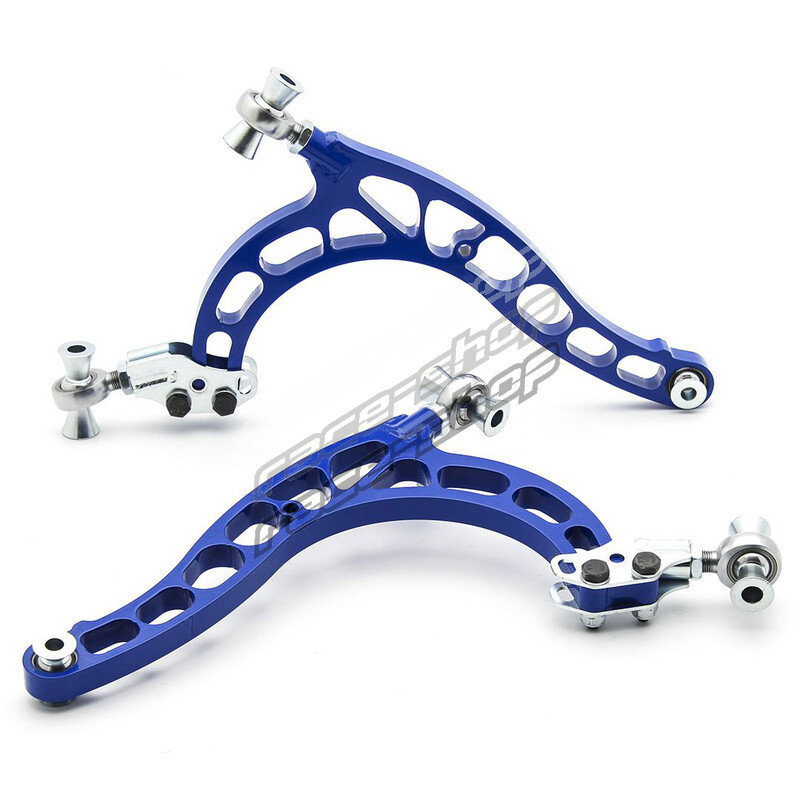

• Lower arms
• Tie rods and tie rod ends
• 30 mm offset steering spacers for tie rods or steering rack relocation kit
• All required harware for installation
• Adjustable lock stoppers
• Adjustable Ackermann effect
• Installation and tuning manual
