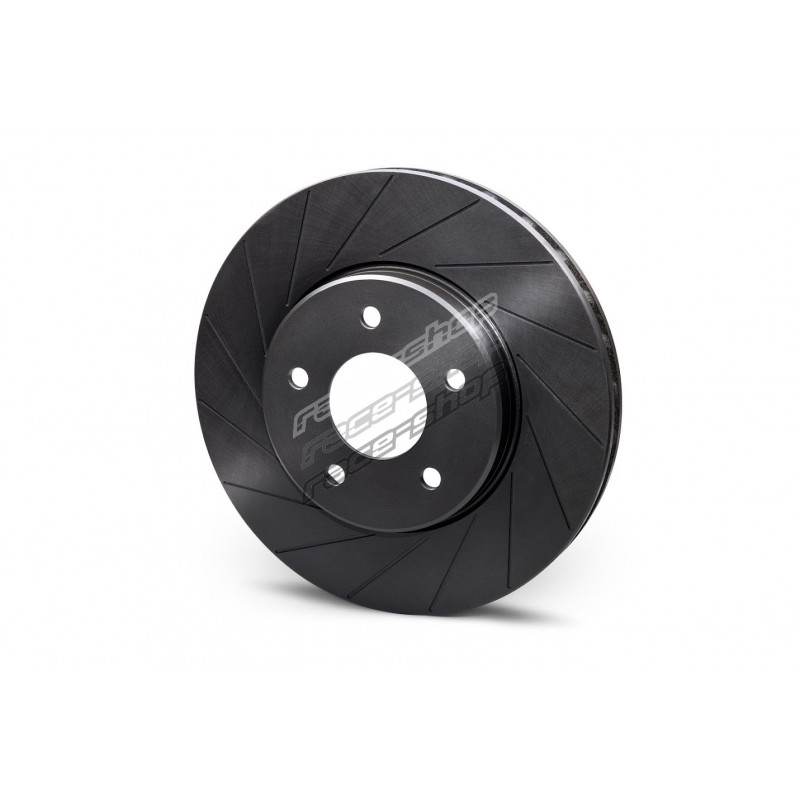

Name: Front brake discs Rotinger High Performance Graphite Line, 20143HP, (2pcs)
Brand: Rotinger
SKU: RT 20143HP
Price: 106.80 EUR
Availability: BackOrder

Front brake discs Rotinger High Performance Graphite Line 20143HP, pack of 2. Diameter: 308 mm. Suitable for: OPEL, SAAB. Graphite Line anti-corrosion coating on all disc surfaces. Versions: Standard, T1, T2, T3, T4, T5, T6, T9.

Description

Front brake discs Rotinger High Performance Graphite Line 20143HP, pack of 2.

Graphite Line is Rotinger's anti-corrosion coating, applied by galvanising followed by oil impregnation. It covers all inner and outer surfaces of the disc and resists corrosion for up to 168 hours in a salt spray chamber (ASTM B-117). The coating acts as a preservation layer, so the discs do not need chemical cleaning before installation.

The High Performance line is made of cast iron with an increased carbon content (High Carbon). According to the manufacturer, this raises the disc's thermal resistance: it dissipates heat faster and copes better with repeated heating and cooling.

Versions

Standard – plain, not drilled or slotted
T1 – Regular Slotted
T2 – V-Slotted
T3 – Drilled
T4 – Drilled & Slotted

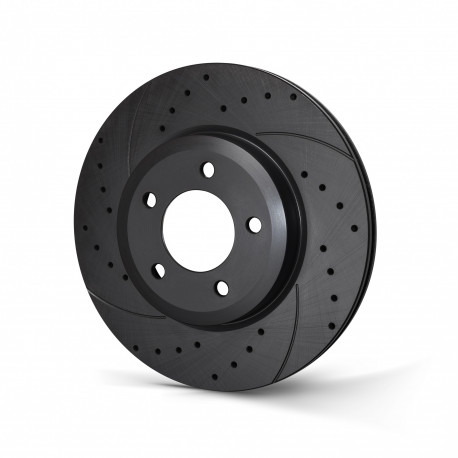

T5 – Drilled & Slotted Plus
T6 – Regular Slotted Plus
T9 – Hook Slotted

Specifications

Axle: front
Diameter: 308 mm
Height: 42,1 mm
Thickness / minimum thickness: 25 / 22 mm
Number of bolt holes: 7
Disc type: vented
Material: cast iron with increased carbon content (High Carbon)
Surface finish: Graphite Line

OEM Numbers

05391560
4567798
5055389
5084769
5122833
5391560
569061
91158407
9184405
9194477

Cross References

ATE: 24012501421, 24032501421
Bosch: 0986478588
Brembo: 09936910, 09936911
Jurid: 562240J
Textar: 92110900
TRW: DF4246
Delphi: BG3142
Zimmermann: 430147320

Package Contents

2× brake disc

Suitable for

OPEL ASTRA H TwinTop 2.0 Turbo, 125 kW / 170 HP
OPEL MERIVA B 1.4 LPG, 88 kW / 120 HP
OPEL ASTRA H GTC 2.0 Turbo, 177 kW / 240 HP
OPEL ZAFIRA B (A05) 1.8, 103 kW / 140 HP
OPEL ASTRA G Coupe (F07_) 2.0 16V Turbo, 140 kW / 190 HP
OPEL ASTRA H GTC 1.6 Turbo, 132 kW / 180 HP
OPEL MERIVA 1.6 Turbo, 132 kW / 180 HP
OPEL MERIVA B 1.7 CDTI, 81 kW / 110 HP
OPEL ASTRA H GTC 1.9 CDTI, 74 kW / 101 HP
OPEL ASTRA H 2.0 Turbo, 147 kW / 200 HP
OPEL ZAFIRA B (A05) 1.9 CDTI, 88 kW / 120 HP
OPEL ASTRA H TwinTop 1.6 Turbo, 132 kW / 180 HP
OPEL ZAFIRA A (F75_) 2.0 OPC, 141 kW / 192 HP
OPEL ZAFIRA A (F75_) 2.0 OPC, 147 kW / 200 HP
OPEL ASTRA H 1.9 CDTI, 88 kW / 120 HP
OPEL ASTRA H GTC 2.0 Turbo, 125 kW / 170 HP
OPEL ZAFIRA B Van 1.6 CNG Turbo, 110 kW / 150 HP
OPEL ASTRA H 1.9 CDTI, 74 kW / 100 HP
OPEL ZAFIRA B (A05) 2.0, 147 kW / 200 HP
OPEL ASTRA H GTC 1.9 CDTI, 88 kW / 120 HP
OPEL ASTRA H GTC 1.9 CDTi, 110 kW / 150 HP
OPEL ASTRA G Hatchback (F48_, F08_) 2.0 OPC, 147 kW / 200 HP
OPEL ZAFIRA B (A05) 2.0, 177 kW / 241 HP
OPEL ASTRA G Coupe (F07_) 2.0 16V Turbo, 141 kW / 192 HP
OPEL ASTRA G Coupe (F07_) 2.0 16V Turbo, 147 kW / 200 HP
OPEL ASTRA H Estate 1.9 CDTI, 110 kW / 150 HP
OPEL ASTRA H TwinTop 2.0 Turbo, 147 kW / 200 HP
OPEL ASTRA H 1.6 Turbo, 132 kW / 180 HP
OPEL ZAFIRA B (A05) 1.9 CDTI, 74 kW / 100 HP
OPEL ZAFIRA B (A05) 2.2, 110 kW / 150 HP
OPEL ASTRA H 2.0 Turbo, 125 kW / 170 HP
OPEL ASTRA H Estate 2.0 Turbo, 125 kW / 170 HP
OPEL ZAFIRA C (P12) 1.8 LPG, 101 kW / 137 HP
OPEL CORSA D 1.6 Turbo, 141 kW / 192 HP
OPEL ZAFIRA B (A05) 1.7 CDTI, 92 kW / 125 HP
OPEL ZAFIRA B (A05) 1.7 CDTI, 81 kW / 110 HP
OPEL ASTRA H Estate 2.0 Turbo, 147 kW / 200 HP
OPEL ZAFIRA B (A05) 1.6 CNG Turbo, 110 kW / 150 HP
OPEL MERIVA B 1.7 CDTI, 96 kW / 131 HP
OPEL ASTRA H Estate 1.9 CDTI 16V, 88 kW / 120 HP
OPEL ZAFIRA B (A05) 1.6 CNG, 69 kW / 94 HP
OPEL ASTRA H 1.9 CDTI, 110 kW / 150 HP
OPEL ASTRA G Estate (F35_) 2.0 OPC, 141 kW / 192 HP
OPEL ZAFIRA B Van 1.7 CDTI, 81 kW / 110 HP
OPEL ZAFIRA B Van 1.7 CDTI, 92 kW / 125 HP
OPEL MERIVA B 1.4, 103 kW / 140 HP
OPEL ASTRA H GTC 1.9 CDTi 16V, 88 kW / 120 HP
OPEL ASTRA H 2.0 Turbo, 177 kW / 240 HP
OPEL ASTRA G Hatchback (F48_, F08_) 2.0 OPC, 141 kW / 192 HP
OPEL ASTRA H 1.9 CDTI 16V, 88 kW / 120 HP
OPEL ASTRA H TwinTop 1.9 CDTi, 110 kW / 150 HP
OPEL ASTRA H Van 1.9 CDTI, 110 kW / 150 HP
OPEL ASTRA G Estate (F35_) 2.0 OPC, 147 kW / 200 HP
OPEL ASTRA H Estate 1.9 CDTI, 88 kW / 120 HP
OPEL ASTRA G Hatchback (F48_, F08_) 2.0 16V OPC, 118 kW / 160 HP
OPEL ASTRA H GTC 2.0 Turbo, 147 kW / 200 HP
OPEL CORSA D 1.6 Turbo, 110 kW / 150 HP
OPEL ASTRA H Van 1.9 CDTI 16V, 88 kW / 120 HP
OPEL MERIVA B 1.7 CDTI, 74 kW / 100 HP
OPEL ASTRA G Convertible 2.0 OPC, 141 kW / 192 HP
OPEL ZAFIRA B (A05) 1.9 CDTI, 110 kW / 150 HP
OPEL ASTRA H Van 1.9 CDTI, 88 kW / 120 HP
OPEL ASTRA H Estate 1.6 Turbo, 132 kW / 180 HP
OPEL ASTRA G Convertible 2.0 16V Turbo, 147 kW / 200 HP
OPEL ZAFIRA B Van 1.8, 103 kW / 140 HP
OPEL ASTRA H Estate 1.9 CDTI, 74 kW / 100 HP
SAAB 9-3 (YS3D) 2.0 Turbo, 151 kW / 205 HP
SAAB 9-3 (YS3D) 2.0 Turbo, 113 kW / 154 HP
SAAB 9-5 Estate (YS3E) 2.3 t, 136 kW / 185 HP
SAAB 9-3 Cabriolet (YS3D) 2.3 Turbo, 165 kW / 224 HP
SAAB 9-5 Estate (YS3E) 3.0 V6t, 147 kW / 200 HP
SAAB 9-5 (YS3E) 2.3 Turbo, 184 kW / 250 HP
SAAB 9-5 (YS3E) 3.0 V6t, 147 kW / 200 HP
SAAB 9-5 Estate (YS3E) 2.3 Turbo, 169 kW / 230 HP
SAAB 9-5 Estate (YS3E) 3.0 TiD, 130 kW / 177 HP
SAAB 9-3 Cabriolet (YS3D) 2.0 Turbo, 110 kW / 150 HP
SAAB 9-3 (YS3D) 2.0 SE Turbo, 147 kW / 200 HP
SAAB 9-5 (YS3E) 2.3 Turbo, 191 kW / 260 HP
SAAB 9-5 (YS3E) 2.3 Turbo, 162 kW / 220 HP
SAAB 9-5 Estate (YS3E) 2.3 Turbo, 191 kW / 260 HP
SAAB 9-3 Cabriolet (YS3D) 2.0 Turbo, 113 kW / 154 HP
SAAB 9-5 (YS3E) 2.3 Turbo, 169 kW / 230 HP
SAAB 9-5 (YS3E) 2.3 t, 136 kW / 185 HP
SAAB 9-5 Estate (YS3E) 2.3 Turbo, 162 kW / 220 HP
SAAB 9-3 Cabriolet (YS3D) 2.0 Turbo, 136 kW / 185 HP
SAAB 9-5 Estate (YS3E) 2.3 Turbo, 184 kW / 250 HP
SAAB 9-3 Cabriolet (YS3D) 2.0 Turbo, 151 kW / 205 HP
SAAB 9-5 (YS3E) 3.0 TiD, 130 kW / 177 HP
SAAB 9-3 Cabriolet (YS3D) 2.0 SE Turbo, 147 kW / 200 HP

Rotinger brake discs are the result of advanced cutting technology. High quality and attractive design attracts the attention of all tuning enthusiasts. Efficient design ensures reduced braking distance, braking gas emissions and improves cooling properties. Rotinger offers a wide range of brake discs for most cars. Depending on the personal choice, the customer can choose from up to 7 possible types of brake discs. Simple (without drilling and grooving), Slotted, Drilled and combinations thereof. Attractive slots were designed in a carefully thoughtful way. Their design ensures efficient brake pads cleaning and less turbulence of the braking dust. The original Rotinger brake disc is the result of years of research and under no circumstances can it be copied to other brake discs. Each new pattern is tested under extreme conditions in which its quality and operational safety are confirmed. Offering 1400 kinds of brake discs for more than 95% of the cars on the market. The entire manufacturing process meets all safety standards and quality standards. ISO / TS 16949: 2009, ISO 9001: 2008, ISO 14001: 2004 certificates confirm the quality of the products and the Rotinger process. Rotinger offers Tuning series and High performance brake discs. Both types can be ordered in Graphite Line design and drilled design.

Tuning series offers excellent anti-corrosion protection combined with an attractive design that will appeal to every fan of sports brake discs. Effective styling significantly reduces the braking distance and greatly helps to drain gases when braking. Ventilation areas ensure optimal cooling of the brake disc.

Rotinger High Performance, brake discs enriched with carbon compounds and innovative anti-corrosion protection. Increased carbon content ensures better thermal distribution, lower temperature changes and resistance to deformation of the disc under heavy braking. Thermal strain is one of the most common problems of today's vehicles, which leads to unpleasant vibrations during braking. Unique design combined with a carbon structure ensures high braking performance under all conditions.
