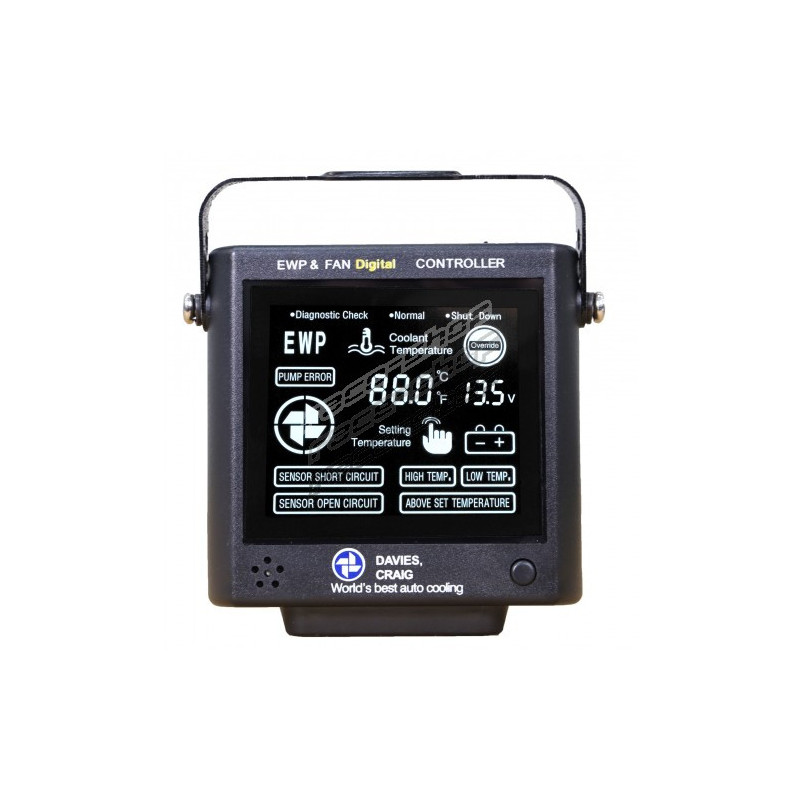

Davies Craig LCD electric water pump fan digital controller 12/24 Volt

This unique Digital Controller will manage the operation of the pump by varying the speed of the pump in response to the coolant temperature and managing control of your electric engine fan.

The Controller has a push-button to lock in any temperature between 40°C and 110°C. It’s highly recommended you set/target the controller to match your engine’s existing thermostat temperature closely.

Generally, a higher engine temperature will offer improved fuel efficiency and a lower engine temperature more power. The Digital Controller will operate the engine’s electric fan automatically once the engine has reached 3°C (5.4°F) above the targeted (set) temperature. Another significant benefit is that the controller allows the pump to run after ignition shutdown to eliminate heat soak.

Technical specifications:

• Voltage range: 12V DC to 29V DC
• Display LCD size: 75mm (3”) x 65mm (2.55”)
• Maximum current: 12A
• Warning alarm: high/low temperature, above set temp., sensor short circuit, pump error, high/low voltage, and sensor open circuit
• Targeted (set) temperatures: 40°C (104°F) to 110°C (230°F), override feature for bleeding operation
• Memory storage: built-in targeted temperature memory
• Fan cut-in temperature: 3°C (5.4°F) above the targeted (set) temperature Davies Craig fan symbol rotates
• Controller type: PCB with micro-processor
• Sensor type: thermal sensor
• Overrun/shutdown: 10°C (14°F) below set/target temperature or 3 minutes whichever occurs first
• Indicators: temperature, power, EWP, test, fan, high/low temp, voltage, above set temperature (with alarm)
• Weight: 100g
• Dimensions: 98mm (l) x 95mm (w) x 25mm (d)
