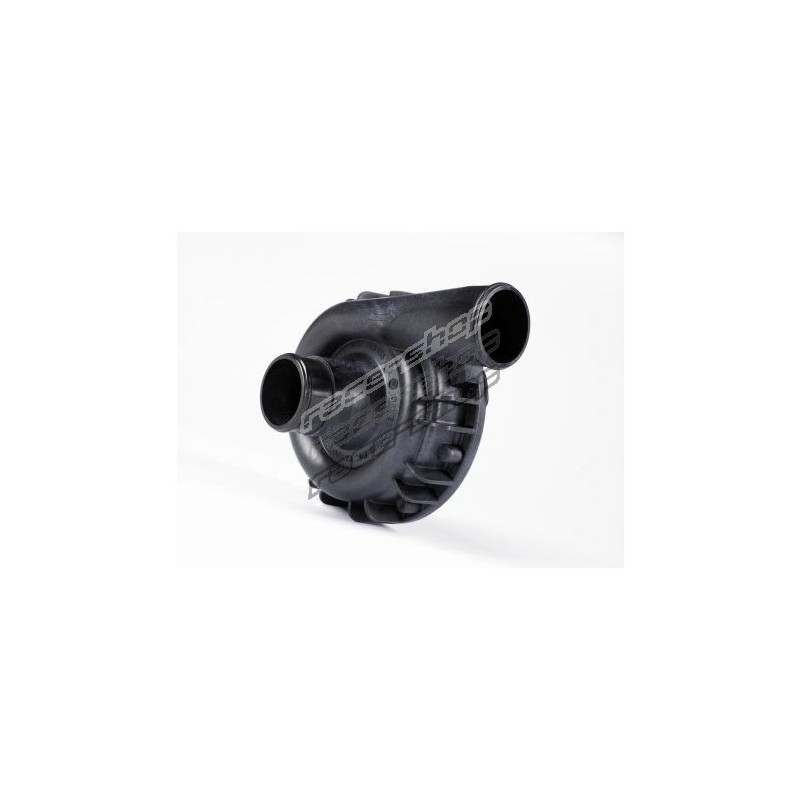

Davies Craig EWP115 nylon kit, 12v 115lpm remote electric water pump

The EWP115 is a practical alternative to the mechanical belt-driven pump or fitted as an auxiliary pump. Mechanical belt-driven water pumps run directly off the motor and sap engine power. The EWP115 is hardwired into your electrical system, by-passing the engine and releasing up to an additional 10kw (13hp).

Technical specifications:

• Voltage: 12 Volt Pump
• Operating voltage: 3V DC to 15V DC
• Maximum current: 10A at 13V
• Flow rate (max): 127 L/min (33.5 US gal/min) @ 13V DC
• Operating temp.: -40° to 130°C
• Pump design: Clockwise centrifugal with volute chamber
• Pump weight: 920g
• Pump material: Nylon 66 - 30% Glass Filled
• Burst pressure: 500 kPa (72.5 psi)
• Seal: Ceramic face seal
• Self Priming: No
• Fits hose sizes: 35mm to 51mm (1⅜” to 2”) Push-on Fittings
• Push-On fitting Size: EWP Inlet & Outlet 38mm

Combined with an LCD EWP Fan Digital Controller (Sold separately Part ID *8002) will manage both the EWP and Thermatic fan operation. The Digital Controller will vary the speed of the EWP in response to the engine’s coolant temperature. Multiple temperature settings are provided on the Controller for either maximum power or fuel efficiency. The Thermatic Fans will be activated automatically once the engine coolant rises 3°C (5.4°F) above the targeted (set) temperature. The Digital Controller will automatically run on for three minutes (or to 10°C / 14°F below the set temperature) after the engine shut down, eliminating heat soak and extending engine life.

Contents:

• 1x EWP®115 Nylon 12V
• 1x EWP Basic Wiring Harness
• 2x Hose Clamps
• 1x RED - Wire Joiner
• 1x RED - 6mm Ring Terminal
• 1x RELAY - 12V 40 Amp 5 Pin with resistor protection
• 1x SCREW - SELF TAP 8X3/8 BZ
