Davies Craig EWP80 Alloy Flange Combo - Remote Electric Water Pump & Controller (12V)

The EWP80 Alloy Flange Combo configuration mirrors the highly successful EWP80 Nylon pump first released in 1999. It provides a maximum flow rate of 90 l/min (23.8 g/min) and will fit most vehicle makes, and models fitted with naturally aspirated engines up to two litres as an alternative to the mechanical belt-driven pump or as an auxiliary pump.

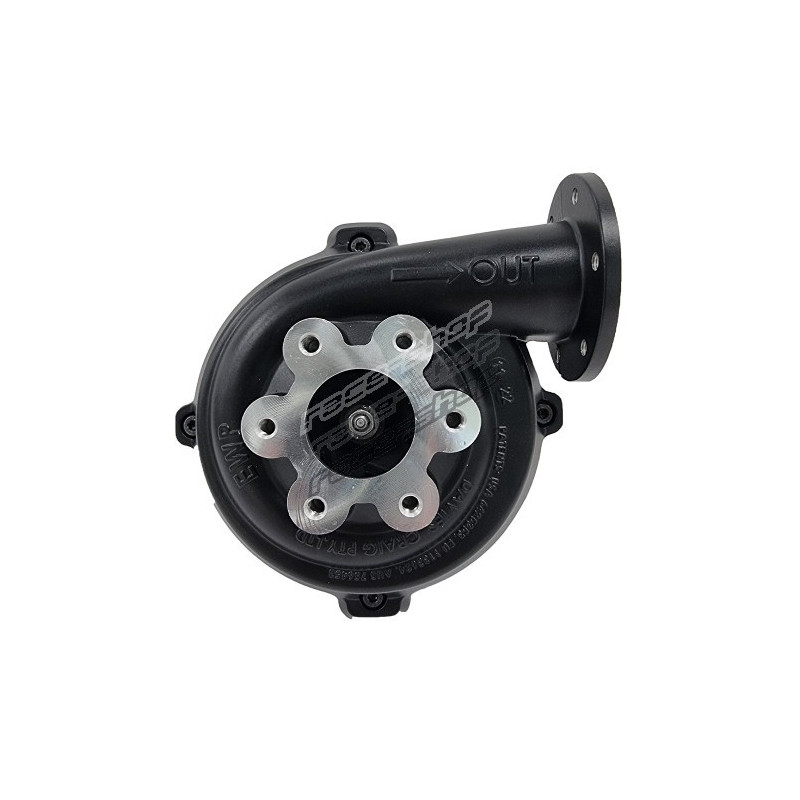

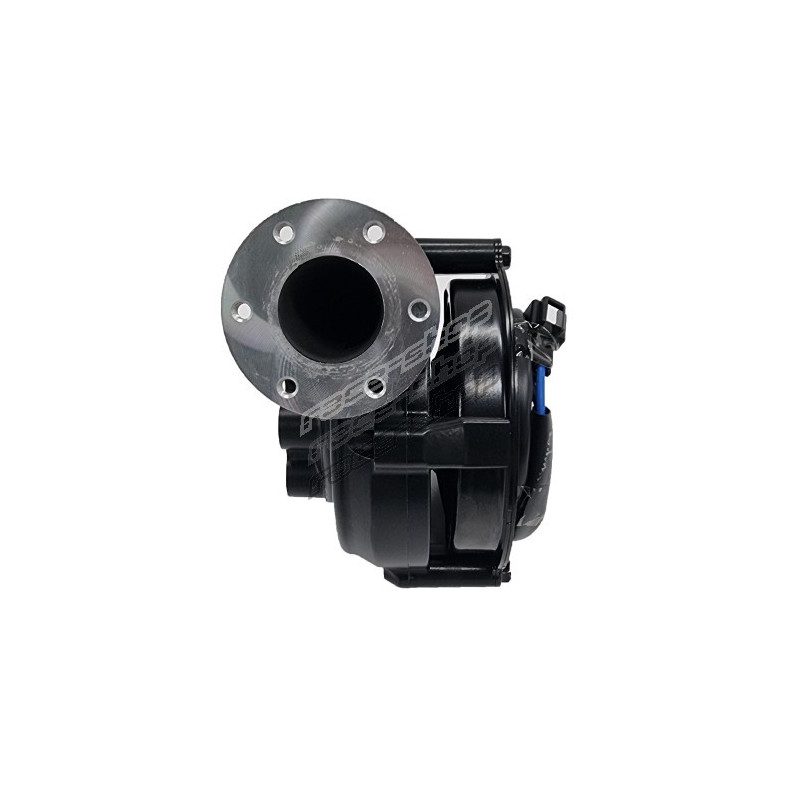

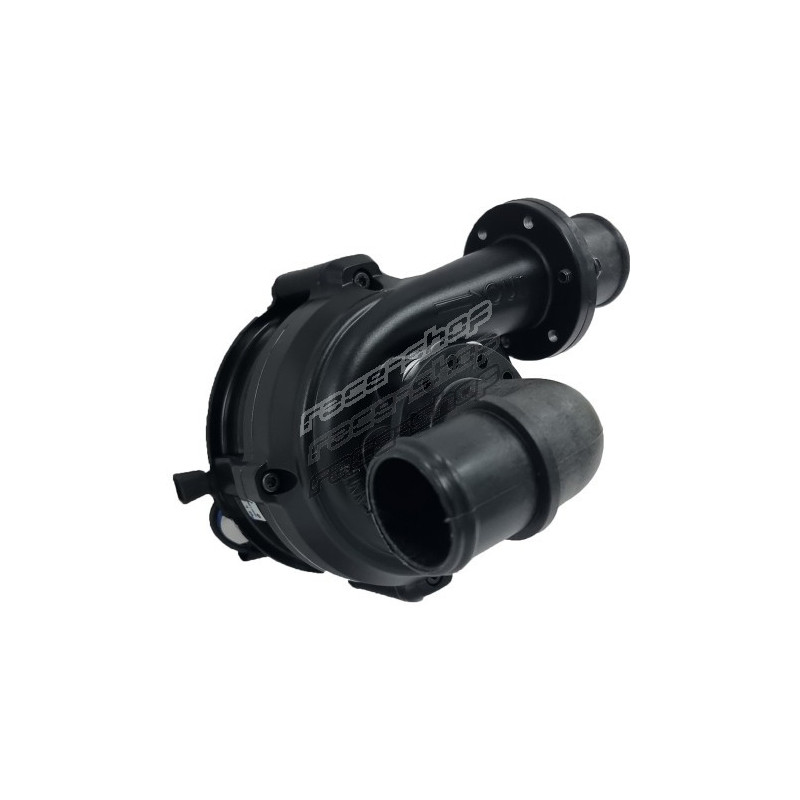

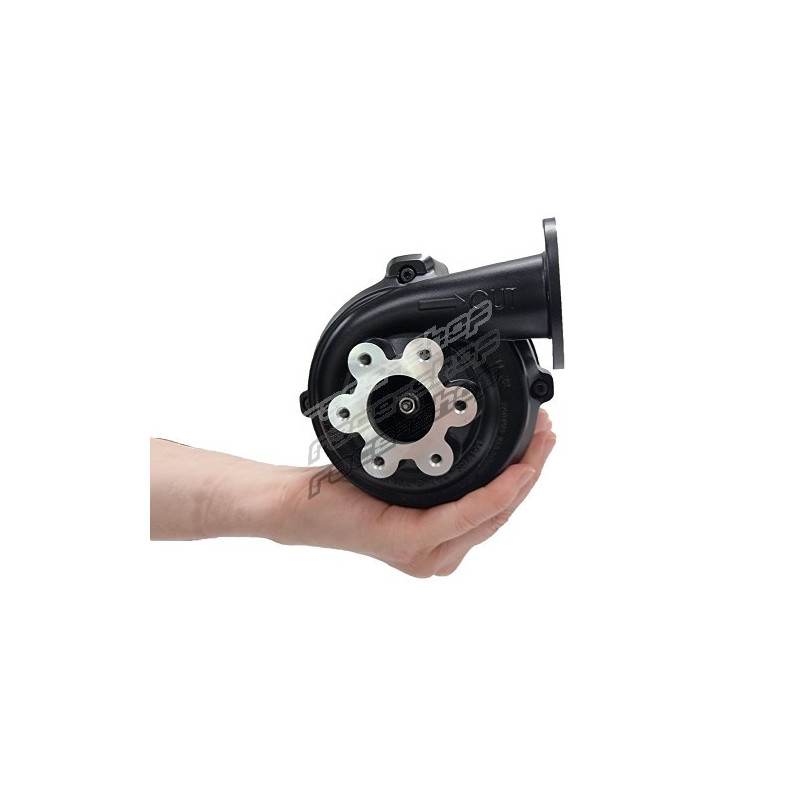

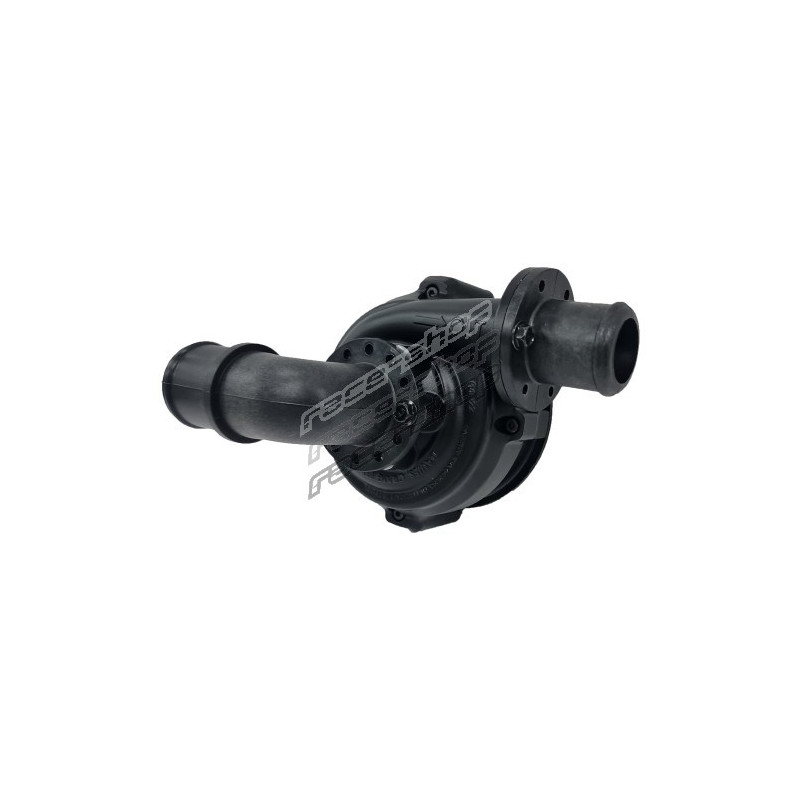

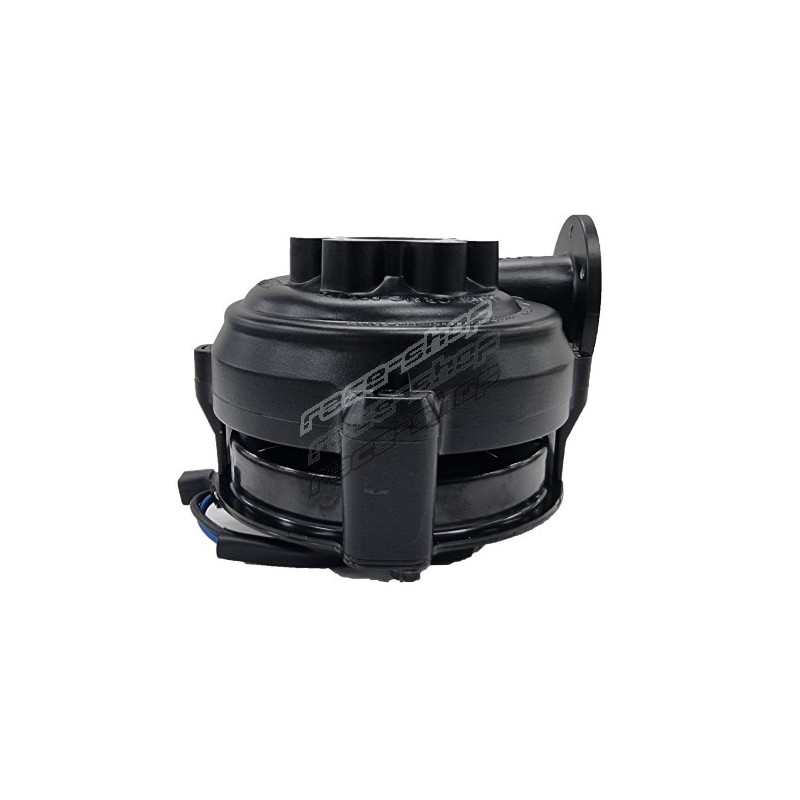

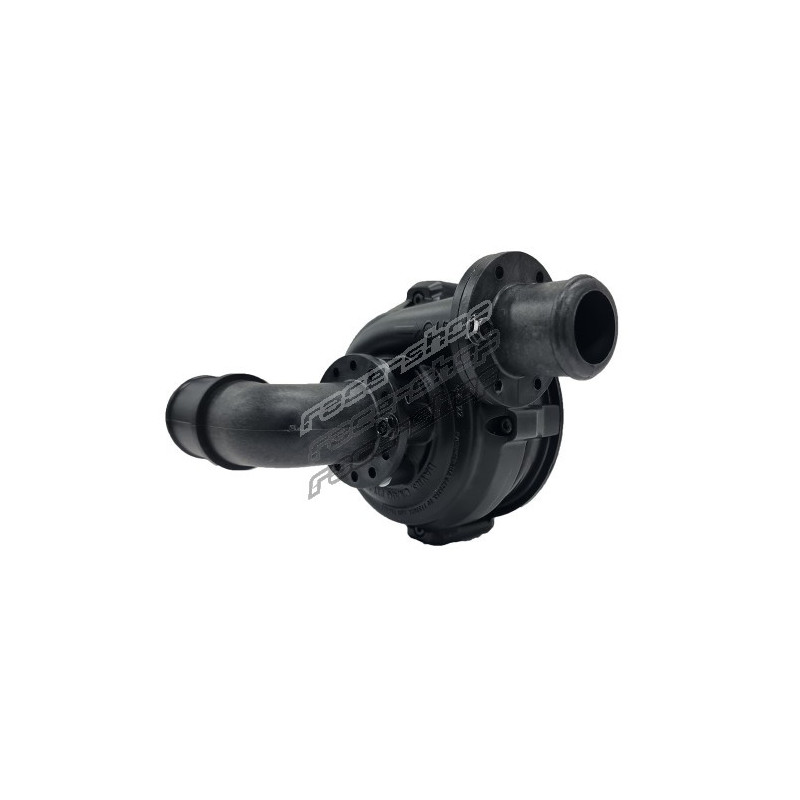

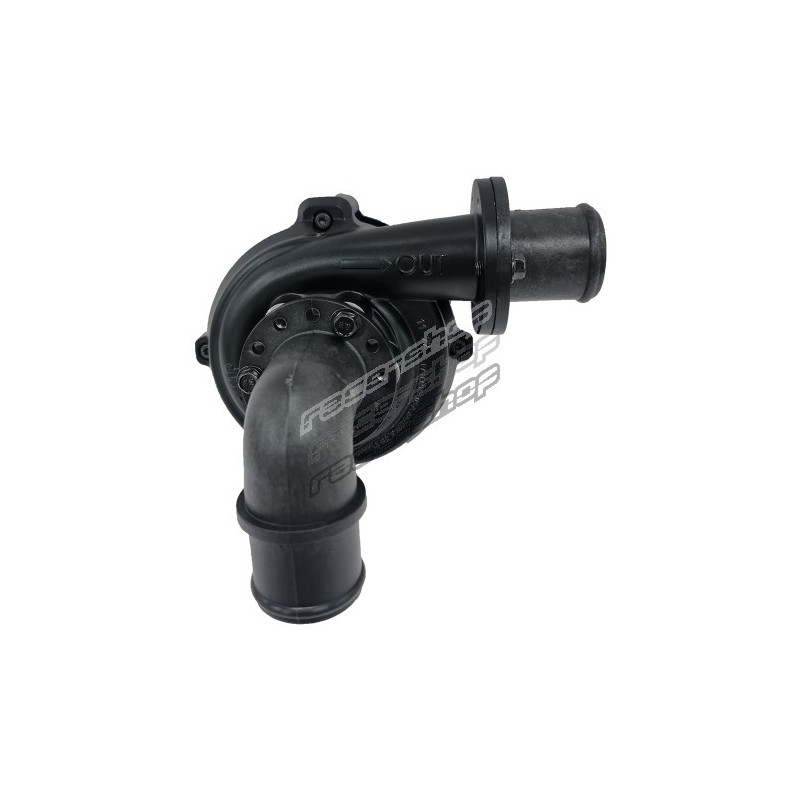

This compact pump is manufactured out of lightweight Aluminium and utilises 6 bolt flange fittings on both the inlet and outlet of the pump for superior fitment flexibility. The provided 35mm (1-3/8”) straight and right-angle push on barb fittings offer convenient fitment in any application.

Technical specifications:

• Operating voltage: 12V DC to 16V DC Maximum
• Maximum current: 7.5A at 13V
• Flow rate (max) 90 L/min (23.8 US gal/min) @ 0kPA
• Operating temperature: -40° to 120°C (-40° to 246°F)
• Operating temp.: -40° to 120°C (-40° to 248°F)
• Fluid Temperatures: -40°c to 120°c (-40°F to 248°F)
• Pump weight: 1100 grams (2.43 lb)
• Motor Type: Brushed DC Motor
• Body Material: Aluminium
• Burst pressure: 500 kPa (72.52 Psi)

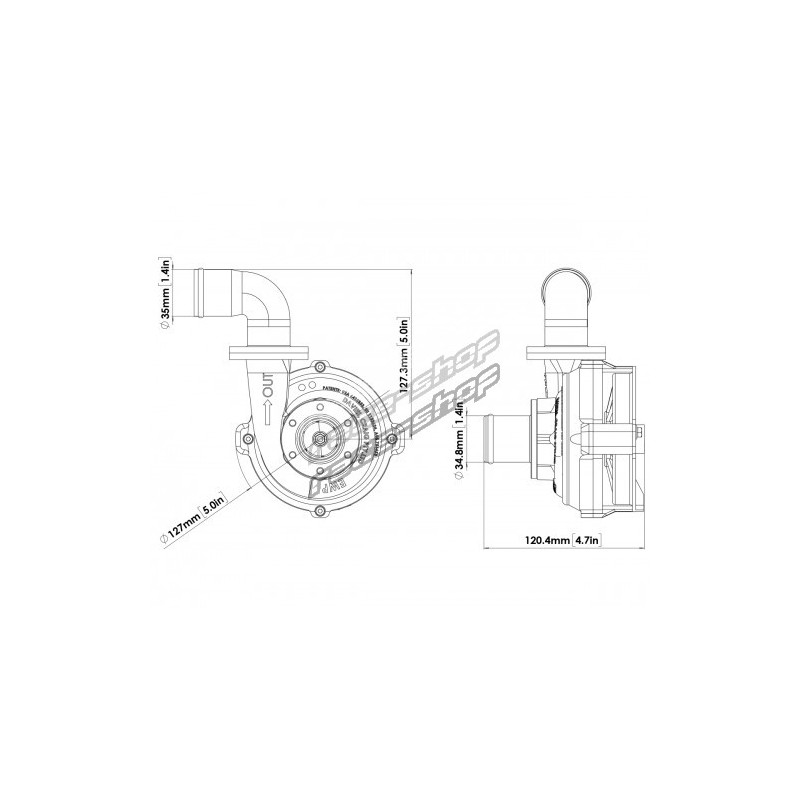

• Inlet & Outlet: 6 Bolt Flange - 35mm (1-3/8") Push on barb
• Hose Fitment: 32mm to 38mm (1¼” to 1½”)
• Hose Fitment with 3mm Sleeve #8510: 41mm to 44mm (1⅝” to 1¾”)
• Hose Fitment with 6mm Sleeve #8511: 47mm to 50mm (1⅞” to 2”)

With a maximum flow rate of 90 l/min (23.8 g/min), 35mm (13/8”) inlet and outlet, arrives in magnificent matt-black, powder-coated finish and offers the same high class, performance, compactness, and style you have come to expect from the world’s largest supplier of remote-mounted electric water pumps and world-beating engine cooling products company, Davies Craig Pty Ltd.

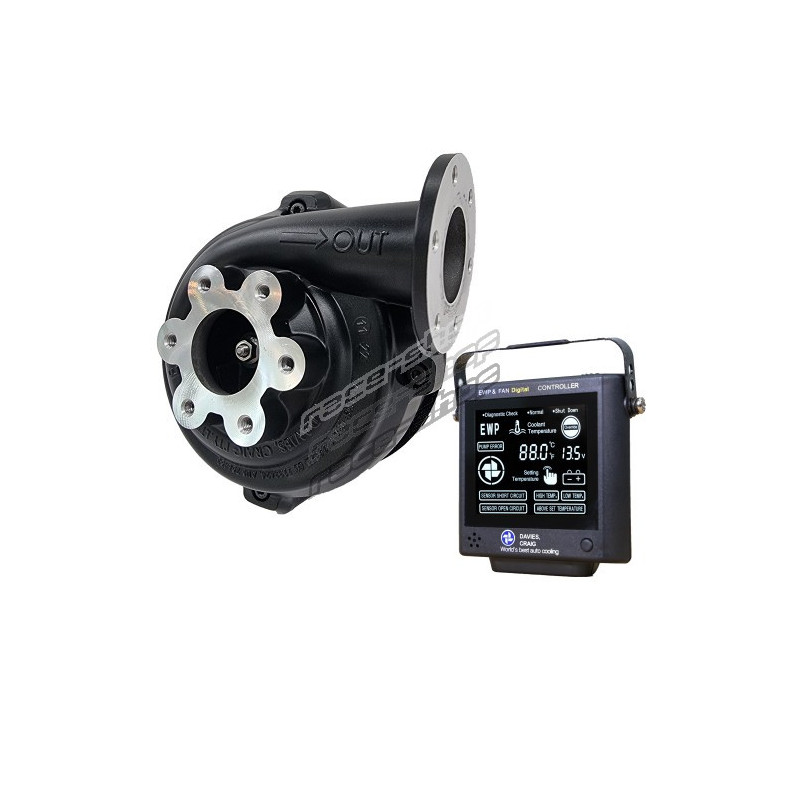

Customers continue to enjoy superior engine cooling technology using Davies, Craig’s extensive range of remote-mounted Electric Water Pumps (EWP®) combined with the patented LCD EWP/Fan Digital Controller, commonly called EWP Combo Packs!

The EWP80 greatly enhances engine cooling control while giving you added power and improved fuel economy. By removing the parasitic power losses of a belt-driven, mechanical water pump the EWP can provide up to 10kW (13hp) of extra power and increased torque and used extensively in Intercooler applications.

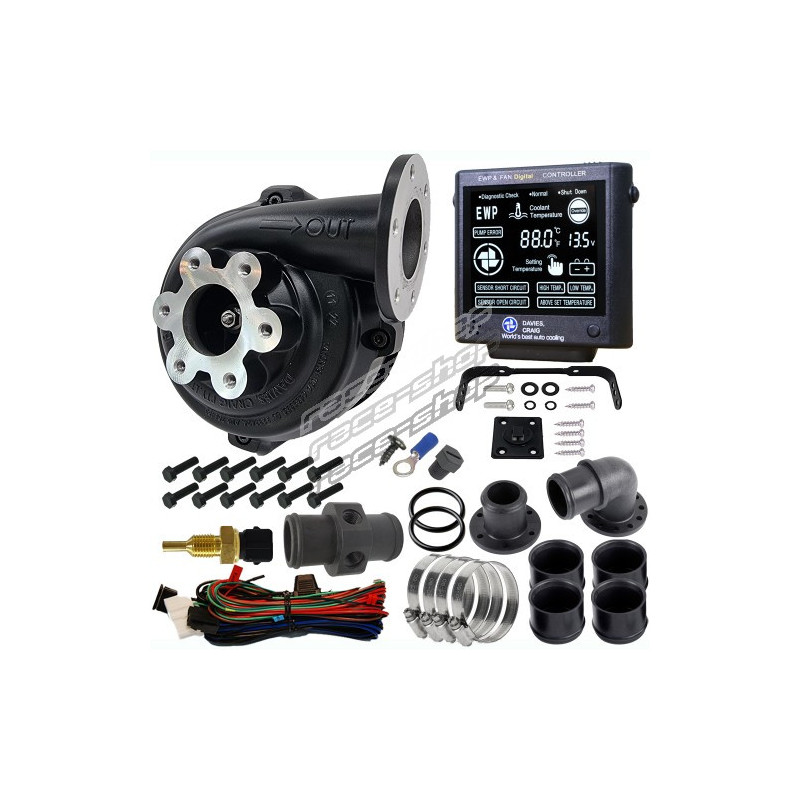

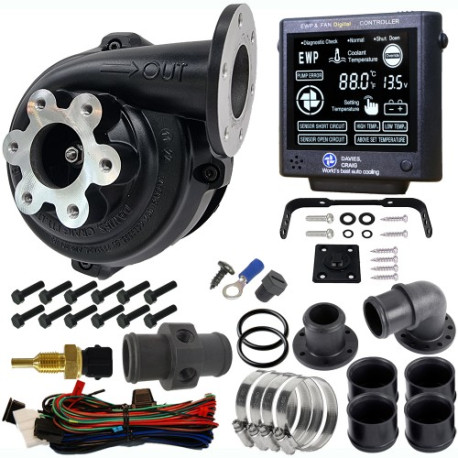

Contents:

• 1x EWP80 - Alloy Flange
• 1x EWP/Fan Digital Controller and Mounting Bracket & Plate
• 1x Inline Adapter Nylon 35mm (2 x 1/4" NPT) & Nylon Bung
• 1x Thermal Sensor Coolant Temp 1/4" NPT
• 12x 5x12 Flanged Hex Set Screw Zinc Silver
• 1x 35mm Nylon Flange Adapter 90 degree Elbow
• 1x 35mm Nylon Flange Adapter Straight
• 2x EWP Adapter O-Ring
• 4x Adapter Rubber Sleeve 3mm (1/8")
• 4x Hose Clamps
• 1x EWP & Controller Wiring Harness
• 1x 6mm Ring Terminal
• 1x Self Tap Screw
• 1x Installation Instructions
