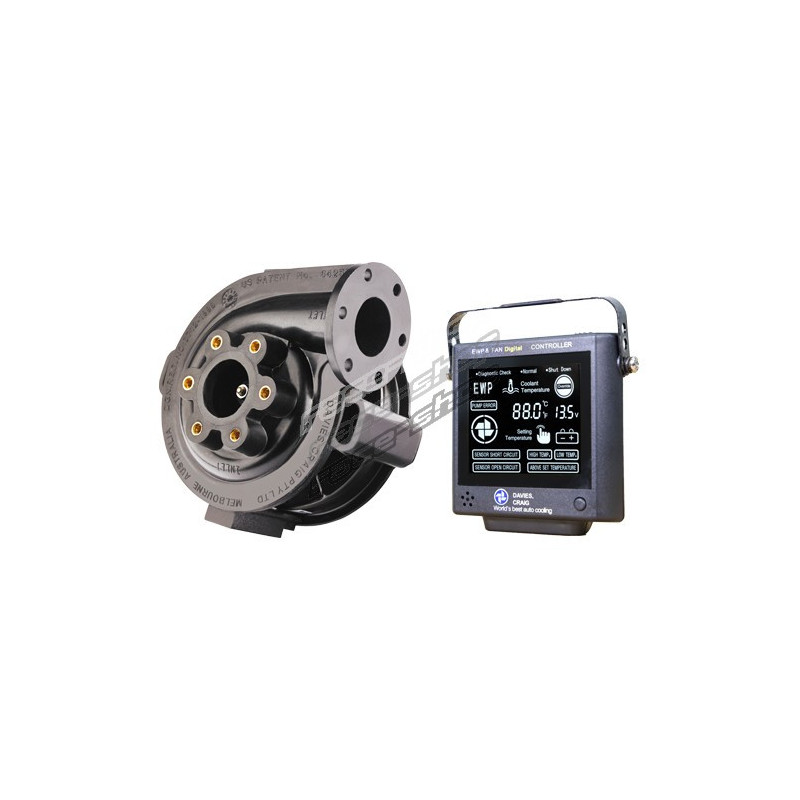

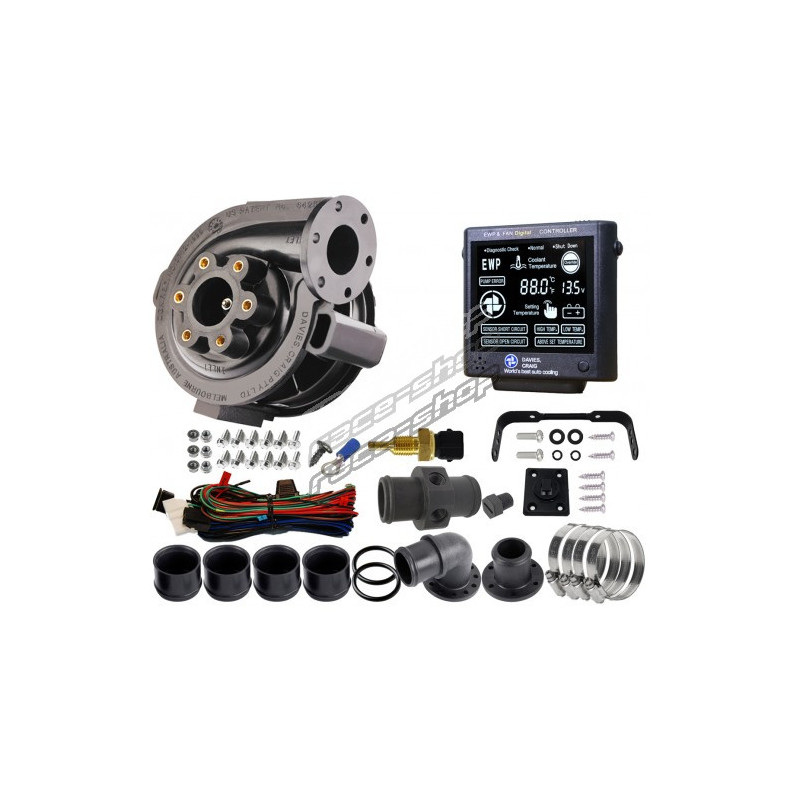

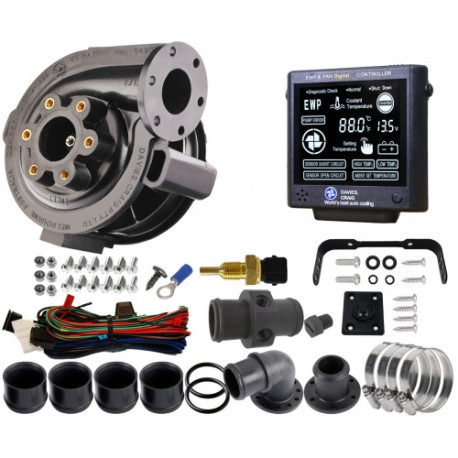

Davies Craig Set Control Panel + electric water pump 80L/Min 7,5A

Electric water pump/ fan controller. The system allows you to control the start-up and precise adjustment of the water pump (speed depending on the engine temperature) and the fan, which allows you to maintain coolant flow in the system with the fans switched on even when the engine is switched off. The possibility of setting a certain coolant temperature from 0 ° C (104 ° F) to 110 ° C (230 ° F).

Water pump with flow up to 80L/Min 7,5A suitable for vehicles of all kinds. It provides a high flow of coolant in the system, which improves cooling and reduces the load on the stock water pump. Practical alternative to a mechanical pump driven by the engine or as a direct replacement.

Show full description

Condition: New product

379,00 € tax incl.1

Sold out

In stock: 0 psc

Product is unavailable. Please choose other goods.

For automatic information about product status update,
click on "notify me".

Enquiry product

Notify me

Reference: 8907

EAN: 9311669089079

Frequently bought together

Electric water pump/ fan controller

Black & White Numerical LCD Screen
Suitable for 12v & 24v electrical systems, with relevant displays
Celsius or Fahrenheit display option
Warnings: - Plus 10°C (14°F) set/target temperature
- Under temp 40°C after 5 mins
- Temp sensor error
- Over or under voltage
- EWP error
Select any set temp range from 60°C (104°F) to 110°C (230°F)
Set / targeted temperature memory
Override feature to assist bleeding EWP & fail safe
Input voltage display
Genuine Thermometer, with coolant and targeted/set temp. displays
Diagnostic check & warm-up signals

Technical specification:

Voltage: 12V- 29V
LCS display size: 70mm x 60mm
Maximum current: 12A
Dimensions: 95x130x25mm
Weight: 100g

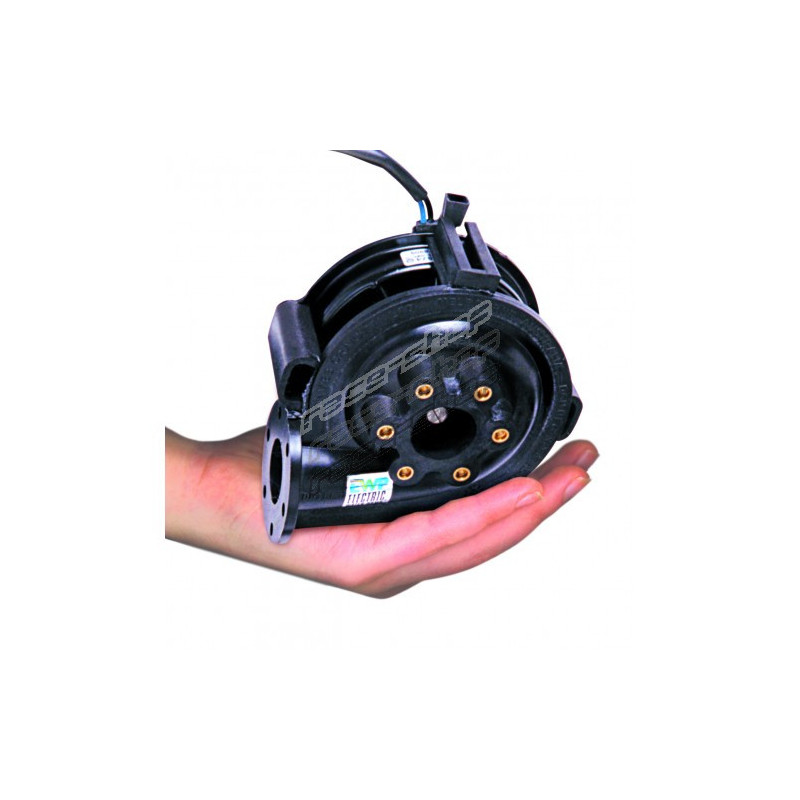

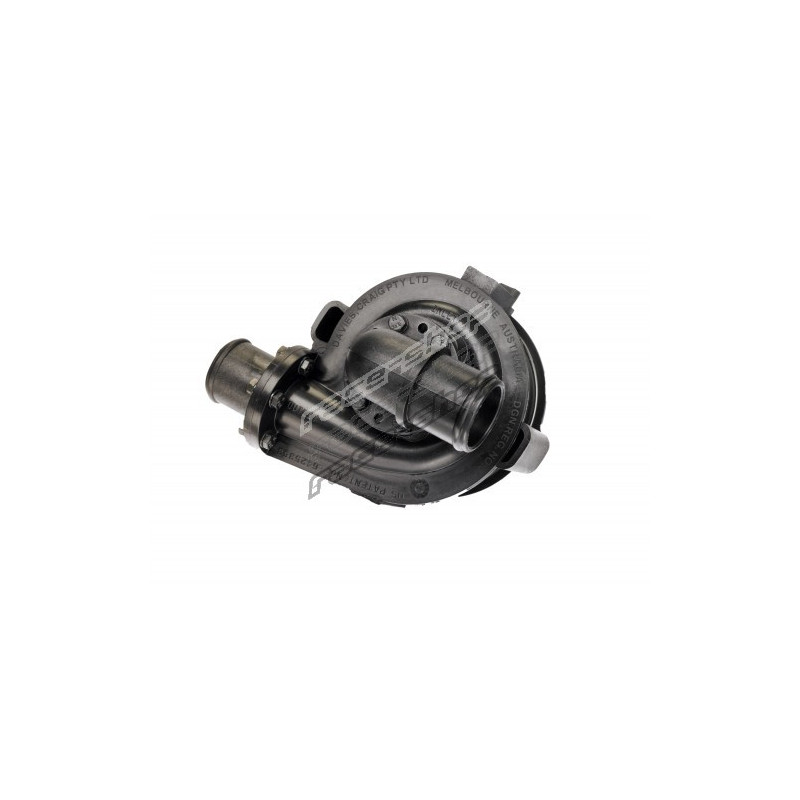

Water pump with flow up to 80L / min (7,5A)

voltage: 12V
operating voltage: 3V DC to 15V DC
maximum current: 7,5A A 13V
flow rate: 80 L/min
operating temp: -40° to 130°C
pump design: clockwise centrifugal with volute chamber
pump weight: 900g (2,0 lb)
pump material: aluminum
pressure: 350kPa (50 psi)
fits hose sizes: 35mm to 51mm (1⅜” to 2”) (Inlet: -16AN (12) Outlet: -16AN (12))
push-on fitting size: Inlet & Outlet 38mm

Write a review

Data sheet

Type	12V

Be the first to write your review !

Did not find your question?

Enter new question

Do you have a question? Search for an answer.

make	Model	year
Toyota	Camry	SV10, SV11, 4 Door Hatch \| 1983-1987
Toyota	Corolla	80 Series, Liftback AE80 & AE82 \| 1983-1989
Toyota	Corolla	80 Series, Sedan & Hatch AE80 & AE82 \| 1983-1989
Toyota	Corolla	AL Series, Corser AL20 & AL21 \| 1982-1986
Toyota	Corona	CT150 & ST150 \| 1983-1987
Toyota	Corsa	AL20 & 21 \| 1982-1986
