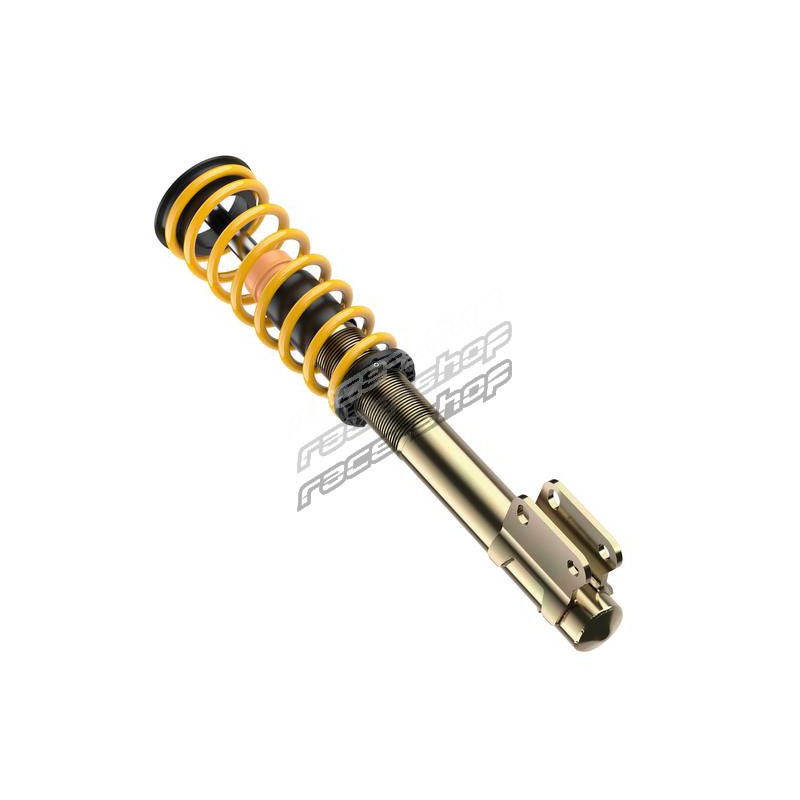

ST Performance coilovers for Subaru Impreza - type ST XTA

Description

ST XTA coilover kit with adjustable damping and adjustable top mounts for Subaru Impreza (GD/GG). For those who demand the very best performance: the driving behaviour of the car can be tuned using KW damper technology together with adjustable aluminium uniball top mounts for fine-tuning of camber and caster.

Performance driving in mind

ST XTA coilovers feature KW damping technology, which allows the suspension to be made either stiffer or softer depending on the driving conditions. The damping adjustment is made at the upper end of the chrome-plated piston rod, so the setup can be changed almost instantly. If the rebound force is increased, the car drives with even more stability and further reduced body roll; if it is decreased, the car feels more comfortable. In addition, the adjustable aluminium top mounts allow camber and caster to be set according to your driving needs or vehicle setup.

Easy lowering adjustment

Like all ST coilovers, the lowering is adjusted via a continuous thread on the galvanized strut. The lowering can therefore be changed even after installation by turning the spring plate up or down. Note: the lowering range differs greatly depending on the vehicle type and year of construction.

KW Engineering, exclusive for ST suspensions

The high-quality ST XTA coilover is based on the twin-tube damping principle with low friction and pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduce the friction of the damper and protect it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in all weather conditions.

Key Features

• Latest damping technology for maximum longevity
• Reduced system friction for effective damping adjustment
• Individual lowering within the tested adjustment range
• Front and rear axle thread adjustment (when possible)
• Galvanized coilover struts with additional coating for optimized corrosion protection
• Complete solution with adjustable spring plate, spring system and bump stops with dust protection
• Aluminium adjustable uniball top mounts (when possible)
• Scaled camber adjustment (when possible)
• Externally adjustable damping

Specifications

• Product line: Street Performance coilover kit
• Coilover version: ST XTA
• Damping adjustment: Yes (rebound)
• Material: Galvanized steel
• Max. front axle load: 1030 kg
• Max. rear axle load: 960 kg
• Front axle lowering: 15–45 mm
• Rear axle lowering: 20–40 mm

Package Contents

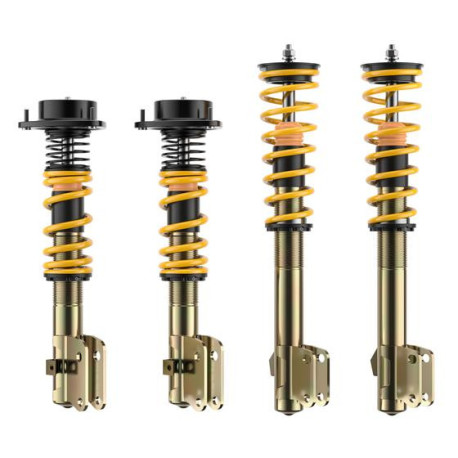

• Set: front axle coilover struts incl. top mounts + rear axle coilover struts

Suitable for

• Make: Subaru
• Model: Impreza
• Type: (GD/GG)
• Year of construction: 09/05-
• Additional information: incl. mod. 06

Complete vehicle list

• SUBARU IMPREZA Saloon (GD) 09/1999–06/2009, 2.5 WRX STi AWD (GDF), 206 kW, 2457 ccm, 4 cyl., saloon, petrol
• SUBARU IMPREZA Saloon (GD) 09/1999–06/2009, 2.5 i WRX STI AWD, 195 kW, 2457 ccm, 4 cyl., saloon, petrol
