Coding dongle LED taillights for VW Golf 6 - 5K

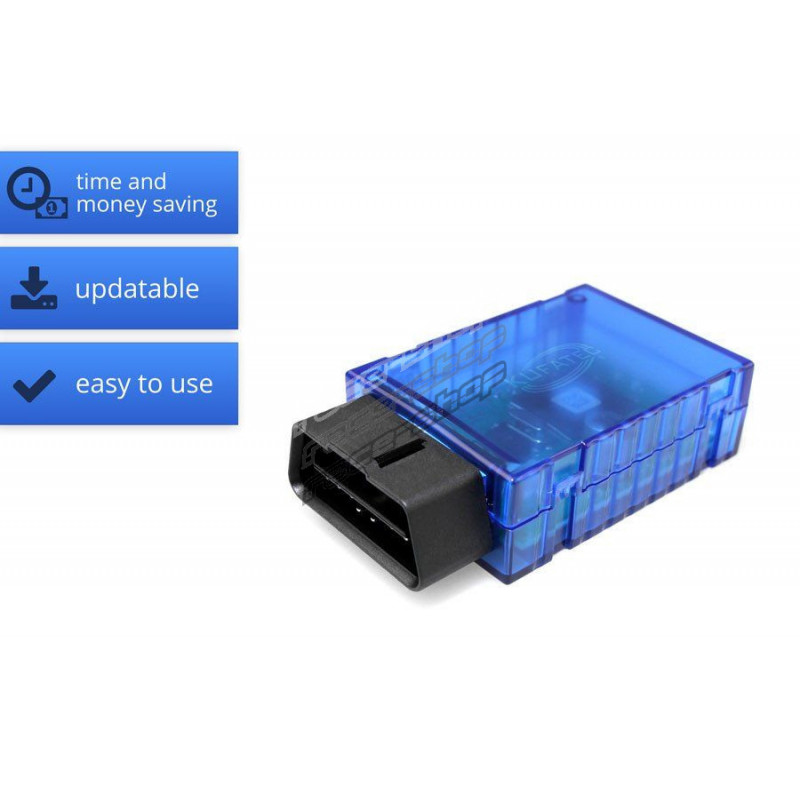

KUFATEC coding dongle

• Interface for final coding after retrofitting original R-line LED rear lights VW Golf 6
• We need information about the factory fitted type of headlight which is fitted on your vehicle:
  • 37572-1 for vehicles with HID xenon head lights with intgerated LED daytime running light (DRL) within the head light
  • 37572 for all other head lights
• Once the interface has been connected to the OBD-port the retrofitting will be adjusted automatically to the current coding of the vehicle

Selectable options:

• Xenon with DRL
• all other

Scope of delivery:

• 1x coding dongle

Note:

• Only for vehicles after week of production 45/2009
• Diagnostic interface can be used several times - But only for the same vehicle
• Only suitable in combination with the correct adapter - Article-ID 37570
• In case you are not sure about the week of production please check the software index of the control unit (BCM) for central electric with your local VW dealer
  • The control unit (BCM) has to have a software index higher then 500
• For control unit (BCM) with software index lower then 500 you do have 2 possibilities:
  • 1. Replacing the BCM to a higher software index (higher then 500), (item nr. 37697)...Or
  • 2. ...agree with an error display within the driver information system
• No guaranty for functionality by using non Kufatec adapters
• Not suitable for right hand drive, not suitable for USA

Suitable for:

Make: Volkswagen

Model: Golf 6 - 5K

Estimated installation time: -
