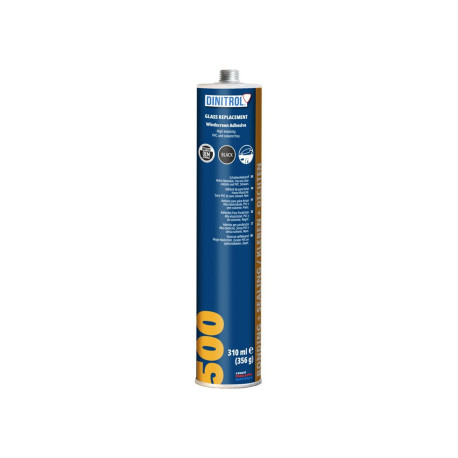

DINITROL 500 one-component windscreen bonding adhesive 310 ml

Description

DINITROL 500 is a one-component polyurethane adhesive that cures with atmospheric moisture. It is designed for direct glazing of automotive glass and other bonded joints in vehicle manufacturing.

It adheres well to paint, has a low odour and high elasticity. It contains no solvents or PVC, resists ageing and weathering, and contributes to the torsional rigidity of the body.

Time to position the glass

The open time is approximately 25 minutes and a skin only starts to form after 30 minutes. This gives you time to position the glass precisely and adjust it, especially with large or complex-shaped glass.

The adhesive works from 10 °C, so you can use it in a cooler workshop too.

Safe drive-away time

A vehicle without airbags can be handed over after 2 hours, a vehicle with passenger airbags after 4 hours — Safe-Drive-Away-Time according to FMVSS 212/208.

The values apply at 23 °C and 50 % relative humidity. In a cooler or drier workshop the time is longer.

Surface preparation

The bonding surface must be clean, dry and free of dust, oil and grease.

Thoroughly clean the ceramic edge of the new glass with DINITROL 582 Special Cleaner, which removes stubborn contamination from both the glass and the ceramic frit.

Depending on the system, this is followed by an activator or primer — for example DINITROL 520 KLEENACT or DINITROL 530 PRIME B. You will find the full range in the surface preparation category. Follow the glass replacement procedure and the pre-treatment table.

Glass without a ceramic frit or equivalent protection needs additional UV protection.

Application

• Apply the adhesive with a sufficiently powerful caulking gun
• Work with the adhesive at room temperature — it is much easier to apply. Product temperature during application 10–35 °C
• Apply a triangular bead so that the adhesive layer has an even thickness
• Fit the glass before a surface skin starts to form — within approximately 25 minutes
• Heat and higher humidity shorten the open time, cold and dry air extend it

What you will need

To dispense the cartridge, use the pneumatic and manual guns from the application equipment category. For frequent work a pneumatic gun is worth it — it doses more precisely and the bead is more even.

For removing the original glass and old adhesive residue, you will find cut-out wires, knives, scrapers and dashboard protectors in the auto glass tools category.

Wear nitrile gloves and respiratory protection — the adhesive contains isocyanates.

DINITROL 500 or 501 FC?

500 — open time 25 minutes, vehicle ready after 2 hours (4 with airbags). More time to position the glass.

501 FC — open time 15 minutes, vehicle ready after just one hour (3 with airbags). Faster workshop turnaround.

DINITROL 500 is also available in a 600 ml foil pack.

Specifications

Product type 1K polyurethane adhesive

Chemical base polyurethane

Colour black paste

Packaging 310 ml cartridge

Curing by atmospheric moisture

Density approximately 1200 kg/m³

Application temperature 10–35 °C (product)

Skin formation approximately 30 minutes

Open time approximately 25 minutes

Curing speed approximately 3–4 mm per 24 hours

Safe drive-away time 2 h without airbags, 4 h with passenger airbags

Shore A hardness approximately 55

Tensile strength approximately 9 MPa

Elongation at break approximately 550 %

Shear strength approximately 8 MPa

Temperature resistance up to 80 °C, briefly (about 1 h) up to 120 °C

Sag resistance very good (non-sag)

Shelf life 12 months below 25 °C

FAQ – When can I hand the vehicle back to the customer?

A vehicle without airbags after 2 hours, with passenger airbags after 4 hours. The values apply at 23 °C and 50 % humidity — in cold and dry conditions the time is longer.

Why choose 500 instead of a faster adhesive?

For the working time. An open time of 25 minutes and skin formation only after 30 minutes give you room to position the glass precisely — you will appreciate this with large and complex-shaped glass. The adhesive also works from as low as 10 °C.

Which cleaner, activator or primer do I need with it?

It depends on the substrate and whether you are bonding to glass, ceramic frit or paint. The products are not interchangeable — always follow the pre-treatment table for the specific substrate. You will find the full range in the surface preparation category.

Why a triangular bead?

It ensures an even adhesive layer thickness around the entire perimeter of the glass. With an irregular bead, the adhesive would be thinner in some places and the joint would not have uniform strength.

Safety information (CLP)

Signal word: Danger

Hazard classification:

Resp. Sens. 1

Hazard statements:

H334 May cause allergy or asthma symptoms or breathing difficulties if inhaled.

EUH204 Contains isocyanates. May produce an allergic reaction.

Contains: methylenediphenyl diisocyanate

Precautionary statements:

P261 Avoid breathing dust/fume/gas/mist/vapours/spray.

P284 Wear respiratory protection.

P304+P340 IF INHALED: Remove person to fresh air and keep comfortable for breathing.

P342+P311 If experiencing respiratory symptoms: Call a POISON CENTRE/doctor.

For professional use only. As from 24 August 2023, adequate training is required before industrial or professional use.

Specifications

• Packaging: Cartridge
• Colour: Black
• Volume: 310 ml
